Modern logistics facilities, from automated storage and retrieval systems (AS/RS) to autonomous mobile robot (AGV) fleets, face a conflicting demand. Operators must maximize throughput while simultaneously minimizing the hardware footprint. Every square meter occupied by a drive unit is space lost for inventory or battery capacity. Traditional inline gearboxes often create a bottleneck. They eat up valuable aisle width and vertical clearance due to their protruding geometry. Conversely, standard worm gears offer compactness but sacrifice significant energy efficiency, leading to thermal management issues.
The solution lies in a specific architectural shift. The Compact Parallel Reducer framework, particularly the advanced RFKS Gear Reducer class, provides the optimal bridge between high torque density and tight spatial integration. This article serves as a technical evaluation guide for engineers and facility managers. We will focus on performance metrics, retrofit viability, and ROI-driven selection criteria to help you upgrade your systems efficiently.
Space Optimization: Parallel shaft designs "fold" the reduction path, offering a flatter profile ideal for AGVs and wall-hugging conveyors compared to inline alternatives.
Efficiency Gains: Unlike worm gears (60-80% efficient), helical parallel reducers often exceed 95%, significantly lowering TCO in 24/7 logistics operations.
The RFKS Standard: Why the RFKS Gear Reducer configuration is becoming the go-to for high-precision, heavy-load applications.
Retrofit Viability: How shaft-mounted designs eliminate alignment headaches and allow for "drop-in" upgrades in confined spaces.
The physical constraints of modern warehousing require drive systems that respect spatial limits without compromising power. Parallel shaft architecture addresses this through geometry, torque density, and thermal dynamics.
The primary advantage of a parallel shaft design is the "folded" reduction path. In a coaxial or inline drive, the motor and gearbox extend outward from the driven shaft, creating a long protrusion that blocks walkways or requires wider AGV chassis. Parallel drives offset the motor, allowing the entire unit to lie flat against the machine chassis. This profile is essential for wall-hugging conveyors or sorting systems where aisle width is at a premium. By tucking the motor alongside the gear unit, engineers reclaim valuable volumetric space.
Logistics engineers often struggle to balance torque output with unit weight. Standard worm drives are heavy relative to their torque output due to sliding friction losses. Parallel helical gears offer a superior alternative. They utilize rolling contact, which transmits force more effectively.
Advanced designs now incorporate uncaged needle roller bearings. This component choice allows manufacturers to maximize the number of load-bearing elements within a specific diameter. The result is a dramatic increase in torque density without expanding the housing volume. You get heavy-duty performance in a lightweight package, which is critical for mobile robots where weight directly impacts battery life.
Heat generation is a silent killer in logistics hubs. These facilities often lack directed airflow around drive units, especially when drives are embedded inside AGV shells or enclosed sorters.
We must analyze mechanical efficiency to understand thermal risks. A worm gear might operate at 60% efficiency, meaning 40% of input energy converts to waste heat. In a confined space, this heat can cook sensitive control electronics. Parallel helical reducers typically operate above 95% efficiency. They generate minimal heat, reducing the load on cooling systems and protecting nearby components. This efficiency is not just about energy bills; it is about system survival in enclosed environments.

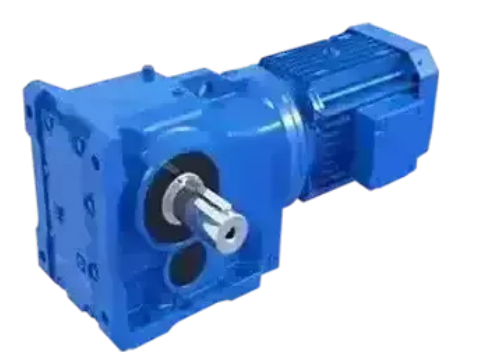

Within the parallel shaft category, the RFKS Gear Reducer stands out as a premium tier solution. It is characterized by modular mounting options and exceptional structural rigidity, making it the preferred choice for high-precision tasks.
Cheaper reducers often suffer from "shaft swing" under load. This phenomenon occurs when the output shaft deflects slightly, causing misalignment in the internal gear mesh. This leads to noise, vibration, and premature fatigue.
The RFKS design addresses this through superior rigid-flexible coupling dynamics. By optimizing bearing placement and housing stiffness, these units mitigate low-frequency fluctuations. Dynamic analysis shows that reducing these fluctuations is key to extending the service life of the drive train. The housing remains stable even under the heavy, shock-loading conditions typical of logistic sorting operations.
Precision is no longer optional in modern logistics. It is a requirement for synchronization and robotics.
Backlash & Hysteresis: For robotic arms and sorter diverters, positioning accuracy is critical. High backlash results in placement errors. The RFKS series minimizes magnetic hysteresis and mechanical play, ensuring the output shaft stops exactly where the controller intends.
Rotational Transmission Error (RTE): This metric measures the difference between the theoretical and actual output position during rotation. Minimizing RTE is essential for conveyors that must run in perfect synchronization. A low RTE ensures smooth motion profiles, preventing goods from toppling during high-speed transfers.
The versatility of the Compact Parallel Reducer allows it to solve distinct problems across different areas of a logistics facility. Below is a breakdown of three common scenarios.
Constraint: The battle between battery capacity and drive components.
Solution: Engineers use flat, parallel drives to achieve "Low Headspace" designs. By reducing the vertical height of the drive module, designers can lower the deck height of the AGV. This creates more internal volume for larger battery packs above the drive.
Metric: These robots must perform rapid start/stop cycles to avoid obstacles. The high efficiency and low inertia of parallel helical gears enable these dynamic movements without overheating the motor or draining the battery excessively.
The Problem: Legacy inline drives often protrude into maintenance corridors. They create "stick-out" hazards. Furthermore, baseplate-mounted units require precise alignment between the gearbox and conveyor shaft. Misalignment leads to coupling failure.
The Fix: Shaft-mounted parallel reducers eliminate the need for baseplates and couplings entirely. The hollow shaft slides directly onto the conveyor drive shaft.
Benefit: This "drop-in" upgrade eliminates alignment issues permanently. It frees up aisle space, allowing forklifts and personnel to move more safely through the facility.
Sorting hubs require variable speeds ranging from 200 rpm to very high-speed diversions. Noise is a major concern in these environments where hundreds of drives operate simultaneously. The helical gear overlap in RFKS units ensures smooth tooth engagement. This results in significantly quieter operation compared to spur gears or worn worm drives.
| Application | Legacy Pain Point | Parallel Shaft Advantage | Key ROI Driver |
|---|---|---|---|
| AGV / AMR | Limited battery space; overheating. | Flat profile; >95% efficiency. | Extended runtime per charge. |
| Conveyors | Aisle obstruction; coupling wear. | Zero protrusion; shaft-mounted. | Reduced maintenance labor. |
| Sorters | Noise pollution; positioning errors. | Quiet helical mesh; Low RTE. | Higher sorting accuracy. |
Selecting the correct reducer requires moving beyond basic catalog ratings. You must evaluate the unit based on real-world duty cycles and environmental conditions.
Catalog ratings often assume uniform loads for 8-10 hours a day. Logistics is rarely this predictable. AGVs experience cyclic loads with frequent acceleration and deceleration. Conveyors run 24/7 during peak seasons.
Engineers should adjust the service factor calculation to account for these realities. It is also vital to consider "Hertz contact theory" regarding stress on gear teeth. Heavy start-up loads, common when a conveyor is fully loaded, induce high contact stress. Ensure the chosen unit has adequate safety margins for these peak moments to prevent surface pitting.
How the unit attaches to your machine dictates maintenance ease. Evaluate the housing options carefully. Hollow shaft designs using a shrink disc provide a secure, keyless connection that is easy to remove even after years of service. Keyed hollow shafts are cheaper but can fret and seize over time.
Look for fully reversible housings. A versatile unit can be mounted in left or right positions. This allows you to stock a single spare part for multiple conveyor locations, significantly reducing your inventory carrying costs.
Lubrication strategy affects long-term reliability. For inaccessible units, such as those inside a sorter, "permanently lubricated" models are preferred. However, ensure the manufacturer uses high-quality synthetic lubricants.
For food or pharma logistics, leakage is unacceptable. Specify units with high viscosity anti-separation grease and redundant sealing systems. This prevents oil from contaminating packaging while ensuring the gears remain lubricated.
The choice of supplier is as critical as the hardware itself. Working with the right Compact Parallel Reducer manufacturer mitigates supply chain risks and ensures long-term support.
Relying on a single source with proprietary flange dimensions is risky. If that supplier faces delays, your maintenance schedule stalls. It is safer to select manufacturers that adhere to ISO-standardized interfaces. This ensures you have options if supply chains are disrupted.
Standard ratios do not fit every application. Does the manufacturer offer custom gearing? You might need specific low ratios for speed increasers or high ratios for slow-moving extruders. Additionally, look for IoT readiness. Leading manufacturers now offer integration options for sensors. These allow for predictive maintenance by monitoring temperature and vibration on critical lines.
Total Cost of Ownership (TCO) analysis should drive the final decision. A parallel shaft reducer may have a higher upfront cost than a worm gear. However, the math changes over a 5-year horizon.
Consider the energy savings. Moving from 70% efficiency to 95% efficiency can save thousands of dollars per unit in electricity, especially for 24/7 operations. Furthermore, factor in labor savings. A "drop-in" shaft-mounted replacement reduces installation time from hours to minutes. These operational savings often pay for the hardware upgrade within the first 18 months.
The shift toward compact parallel reducers represents the maturity of logistics hardware. The industry is moving from simply "making it move" to "moving it efficiently and precisely." The RFKS Gear Reducer series exemplifies this evolution, offering the rigidity and efficiency required for modern automation.
For facilities constrained by floor space or energy budgets, switching to parallel shaft architecture is not just an upgrade; it is a necessary evolution. We recommend conducting an audit of your current drives. Identify units with high failure rates or those that obstruct operations. These are your prime candidates for a parallel shaft replacement.
A: The primary difference lies in efficiency and thermal performance. RFKS reducers utilize helical gearing, which operates at 95%+ efficiency compared to the 60-80% typical of worm gears. This results in significantly less heat generation and lower energy consumption. Additionally, the rolling contact of helical gears results in less wear, offering a longer service life compared to the sliding friction found in worm gear sets.
A: Yes. High-quality parallel reducers are designed with low backlash and minimal hysteresis, making them suitable for precise applications like robotic arms and sorter diverters. When paired with servo motors, they provide the accurate positioning control required for automated systems. Ensure you specify low-backlash options if your application demands high repeatability.
A: Yes, provided they are specified correctly. Manufacturers offer models with specialized surface treatments (such as epoxy coatings or stainless steel paint) and upgraded sealing systems to withstand high-pressure washdowns. For food logistics, it is also essential to specify food-grade lubricants and high-viscosity anti-separation grease to prevent leakage and contamination.
A: The space savings are substantial, primarily in the horizontal plane. By "folding" the motor back alongside the gear unit, you eliminate the motor overhang typical of inline drives. In many retrofit scenarios, this can reclaim 12 to 24 inches of aisle width. It also removes the need for bulky couplings and baseplates, further reducing the overall installation footprint.
