Steel manufacturing environments are unforgiving. Equipment here faces ambient temperatures exceeding 60°C, clouds of abrasive scale dust, and shock loads that would shatter standard industrial components. In this context, the drivetrain is often the weakest link. Standard gearboxes frequently fail prematurely due to thermal overload or bearing fatigue, causing unplanned downtime that costs thousands of dollars per minute in lost production.

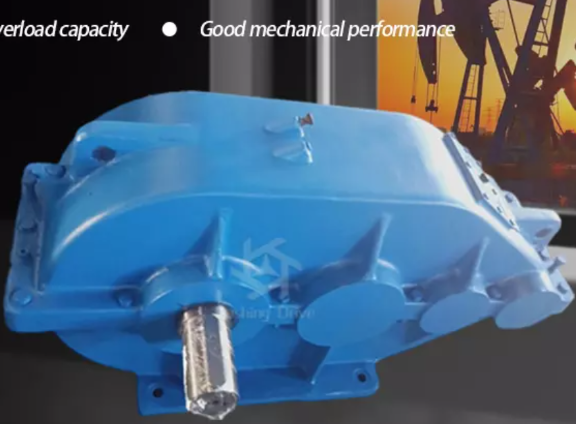

The solution lies in specifying a Robust Cylindrical Speed Reducer. These are not merely transmission devices; they are engineered safeguards designed to ensure uptime across continuous casting and rolling processes. Unlike general-purpose gearboxes, a robust unit is built to withstand specific metallurgical stresses and environmental hazards. This article analyzes specific high-stress applications within steel mills and outlines the engineering criteria required to select a reducer capable of surviving them.
Application Specificity: Why rolling mills, sinter plants, and overhead cranes require distinct gearbox configurations (Service Factor > 2.0).
The "Robust" Definition: "Robust" isn't a marketing buzzword; it refers to measurable specs: case-hardened gears, oversized bearings, and specialized sealing.
TCO Focus: While initial costs for heavy-duty reducers are higher, the ROI is realized through extended maintenance intervals and reduced catastrophic failures.
Selection Priority: Prioritize thermal dissipation and bearing L10 life over raw torque ratings alone.
Rolling mills present the most violent duty cycle in a steel plant. The drivetrain must endure the "bite" phase, where the metal slab first enters the rolls. This event sends a massive, instantaneous torque spike back through the reduction unit. It tests the mechanical limits of every gear tooth and shaft.
Conventional spur gear units often fail catastrophically in these scenarios. Their straight-tooth design results in abrupt engagement. When a shock load hits, the stress concentration on a single tooth often exceeds its yield strength, leading to breakage. Additionally, standard units often lack the contact ratio necessary to distribute these loads effectively, resulting in rapid pitting of the gear face.
To survive the rolling mill, engineers must prioritize specific configurations:
Helical & Double Helical Configurations: Robust reducers utilize helical gears with helix angles typically between 15° and 30°. This geometry ensures that multiple teeth are in contact at any given moment. It increases the contact ratio, effectively smoothing out the shock load during the bite phase.
Carburized Hard Tooth Surfaces: Modern efficiency demands hard-tooth technology. Gears should be manufactured from low-carbon alloy steel, carburized, and quenched. This creates a surface hard enough to resist fatigue while maintaining a tough, ductile core to absorb impact.
Decision Metric: When selecting a unit, evaluate torsional stiffness. High stiffness prevents "wind-up" in the geartrain, which is critical for maintaining consistent gauge thickness in the final steel product.
Sintering and pelletizing plants are characterized by their atmosphere. The air is often choked with iron ore dust and sinter fines. These particulates are extremely hard and act as a grinding compound if they ingress into the gearbox oil sump.
Standard rubber lip seals are the primary failure point here. In an abrasive environment, dust accumulates on the shaft. As the shaft rotates, this dust acts like sandpaper, grooving the shaft and wearing down the seal lip. Once the seal is compromised, contaminants enter the oil, leading to rapid bearing failure and gear wear.
A reducer built for this zone requires a multi-layered defense strategy:
Advanced Sealing Systems: Standard seals are insufficient. You must specify taconite seals, labyrinth seals, or purgeable grease barriers. These designs physically exclude particulate matter, even in heavy dust clouds.
Thermal Management: Sinter plants are hot. The ambient heat reduces the thermal capacity of the gearbox. Robust units integrate auxiliary cooling systems, such as shaft-driven fans, internal cooling coils, or external forced-lubrication systems with heat exchangers.
Decision Metric: Verify the IP rating and seal material compatibility. For high-temperature zones, Viton (FKM) seals are superior to standard NBR (Nitrile) due to their resistance to thermal degradation.
In the melt shop, moving molten steel is a high-stakes operation. Reliability in overhead cranes and ladle turrets is a safety requirement, not just a production goal. A gear failure here could lead to a dropped ladle, resulting in catastrophic damage and potential loss of life.
These applications involve intermittent duty cycles with high start/stop frequencies. They must also handle massive inertial loads. The reducer must control the load during both lifting and lowering (regenerative braking forces), placing unique stress on the output shaft bearings.
Engineering for safety requires significant over-design relative to standard industrial conveyors:
High Service Factors: Engineers should specify Service Factors (SF) of 2.0 to 3.0. This safety margin accounts for the dynamic loads and ensures the unit operates well within its fatigue limits.
Parallel Shaft Designs: Parallel shaft cylindrical reducers are preferred for crane hoists. Their layout is ideal for handling high overhung loads on the output shaft, which is common when connecting to a cable drum.
Decision Metric: Do not rely on gear torque ratings alone. Look for manufacturers who provide calculated fatigue life data for the bearings. In vertical lifting applications, bearing life (L10 life) is often the limiting factor.
To the untrained eye, two gearboxes may look identical. However, "robustness" is defined by the material science and manufacturing precision hidden inside the housing. Buyers must look beyond the basic power and ratio numbers on the datasheet.
The choice of metal determines longevity. Standard gears might use induction hardening, which treats only the surface. A robust unit typically uses low-carbon alloy steel (such as 20CrMnTi) that undergoes carburizing and quenching. This process achieves a deep hardened case (HRC 58-62) for wear resistance.
Housing rigidity is equally vital. While fabricated steel has high impact strength, high-quality cast iron is often preferred for its superior vibration absorption properties, which protects the internal components.
Precision directly correlates to efficiency and noise.
Grinding Standards: Demand DIN 5/6 or AGMA 11+ quality levels. Precision grinding ensures >96% efficiency and significantly reduces noise levels.
Profile Modification: Under heavy load, shafts deflect slightly. Robust gears feature "crowning" or profile modifications to compensate for this deflection, ensuring the load remains distributed across the center of the tooth rather than the edges.
| Feature | Standard Industrial Reducer | Robust Steel Mill Reducer |
|---|---|---|
| Gear Material | Medium Carbon Steel / Induction Hardened | Low Carbon Alloy (20CrMnTi) / Carburized |
| Sealing | Standard NBR Lip Seal | Taconite / Labyrinth / Viton |
| Bearing Life (L10) | ~5,000 - 10,000 Hours | >50,000 Hours |
| Service Factor | 1.0 - 1.5 | 2.0 - 3.0+ |
Procurement teams often fall into the "price vs. cost" trap. A lower initial purchase price often signals the use of undersized bearings, softer gear faces, or inferior seals. In a 24/7 steel mill, the Total Cost of Ownership (TCO) tells a different story.
Energy consumption is a major operational expense. A robust cylindrical reducer typically operates at an efficiency of approximately 98% per stage. In contrast, older worm drive technologies may only achieve 60-80% efficiency. In continuous applications like roller tables, switching to high-efficiency cylindrical units can reduce electricity costs by 15–20% annually.
Maintenance labor and downtime are expensive.
Oil Change Intervals: Standard units might require oil changes every 5,000 hours. Robust designs, compatible with synthetic lubricants and featuring larger sumps, can extend this interval to 15,000+ hours.
Modular Maintenance: Look for split-casing designs. These allow maintenance teams to inspect gears or replace bearings in-situ without dismounting the entire unit from the machine base, saving hours of downtime.
Finding the right partner is as important as the hardware itself. Not every supplier understands the nuance of steel production. You need a Robust Cylindrical Speed Reducer manufacturer who can demonstrate capability in heavy industry.
Customization: Steel mills are full of legacy equipment. Can the manufacturer modify shaft dimensions, center distances, or ratios to create a "drop-in" replacement for an obsolete unit? This capability prevents the need to re-engineer the entire machine foundation.
Compliance: Ensure they meet ISO, DIN, or AGMA standards relevant to heavy industry. Compliance guarantees that load ratings are calculated using standardized, verifiable formulas.
When a breakdown occurs, lead time is the enemy. Verify the manufacturer’s supply chain. Do they maintain a stock of critical spares like seals and bearings? Local support or rapid dispatch capabilities are essential to minimize downtime risk.
Never accept a prototype without data. Does the manufacturer perform full-load testing and noise analysis before shipment? A reputable manufacturer will provide test reports verifying that the unit meets thermal and mechanical specs under load.
In steel manufacturing, the gearbox is the heartbeat of production. Choosing a generic unit based solely on price or catalog torque ratings is a strategic error that leads to chronic failure. Successful implementation requires matching the reducer’s thermal and mechanical ratings to the specific zone of the mill, whether it is the shock-prone rolling stand or the dust-choked sinter plant.
We encourage you to audit your current high-failure assets. Identify where standard units are falling short and consult with an engineering specialist to spec a truly robust cylindrical solution. This investment safeguards your uptime and stabilizes your maintenance budget.
A: A robust reducer is engineered for severe duty. While standard units may have a Service Factor of 1.0, robust units target 2.0 or higher. They feature carburized, case-hardened gears (HRC 58-62) for impact resistance, reinforced cast iron housings for vibration damping, and specialized sealing systems (like Taconite or labyrinth seals) to exclude aggressive dust and moisture found in heavy industry.
A: Efficiency and thermal management are the primary reasons. Cylindrical gears achieve ~98% efficiency per stage, whereas worm gears often struggle between 60-80%. In continuous duty applications like roller tables, worm gears generate excessive heat due to sliding friction, leading to thermal failure. Cylindrical gears run cooler and reduce electricity consumption significantly.
A: You must account for the operational duration and shock load intensity. Start with the motor power and the driven load requirement. Then, apply multipliers for 24/7 operation and heavy shock loads (common in rolling mills). For steel applications, aim for a Service Factor (SF) greater than 1.75, or up to 3.0 for critical lifting equipment like ladles.
A: High temperatures thin out standard mineral oils, compromising the lubricant film. You should use high-quality synthetic gear oils (PAO or PAG based) which offer superior viscosity stability and oxidation resistance at high temperatures. Always check seal compatibility (e.g., using Viton seals) when switching to synthetic lubricants.
A: While robust reducers have longer intervals, they are not maintenance-free. Perform oil analysis every 2,000 to 3,000 hours to check for metal particles or contamination. For oil changes, standard intervals are often 5,000 hours, but with synthetic oil and robust filtration, this can extend to 15,000 hours. Regular vibration monitoring is also recommended.
