In the world of industrial machinery, space is often tight, but the demand for power is high. Whether it’s a conveyor belt moving tons of rock in a quarry or a lift table positioning heavy equipment in a factory, the drive system needs to be compact, robust, and reliable. This is where the worm gearbox shines.
Despite being one of the oldest mechanisms in mechanical engineering, worm gearboxes remain a staple in modern industry. They offer a unique combination of high torque output, significant speed reduction in a single stage, and compact design that few other gear types can match.
However, they aren’t a one-size-fits-all solution. Misunderstanding their efficiency traits or thermal limitations can lead to premature failure. This guide covers everything you need to know about what a worm gearbox is, how it works, its specific advantages and disadvantages, and how to select the right one for your application.

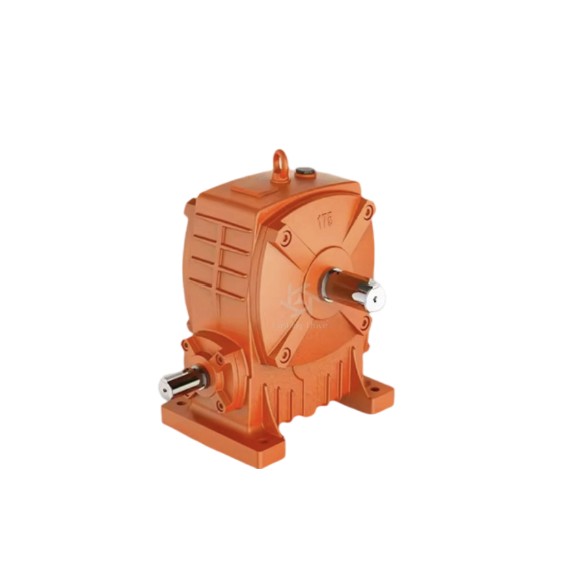

A worm gearbox (also known as a worm gear reducer, worm drive gearbox, or worm gear transmission) is a type of power transmission unit that uses a screw-like shaft (the worm) to drive a toothed wheel (the worm gear).
Classified as right-angle gear reducers, the input shaft and output shaft are oriented at 90 degrees to each other. This geometry allows the motor to be mounted parallel to the machine’s side, saving valuable floor space compared to inline gearboxes that stick out.
Unlike spur or helical gears that roll against each other, the worm “slides” across the gear teeth. This unique interaction allows for massive speed reduction ratios—often ranging from 5:1 up to 100:1—in a single gear stage. While other gearbox types (like planetary or helical) might need multiple stages to achieve a 60:1 reduction, a worm gearbox can often do it with just two moving parts.
Right-angle (90°) power transmission: Changes the direction of the drive by 90 degrees.
High reduction ratio: Capable of achieving high ratios (low speed, high torque) in a compact housing.
Compact structure: Fewer moving parts compared to multi-stage helical or planetary boxes.
Sliding contact: The gear teeth slide rather than roll, which provides quiet operation but generates more heat.
The working principle of a worm gearbox is based on the mechanical advantage of a screw. Imagine a standard bolt and nut. If you turn the bolt, the nut moves forward. In a worm gearbox, the “nut” is effectively the curved teeth of the gear wheel.
The reduction logic is simple but powerful. If you have a single-start worm (meaning one continuous thread like a standard screw), one full revolution of the input shaft advances the worm gear by exactly one tooth.
If the worm gear has 30 teeth, the worm shaft must spin 30 times to make the gear complete one full revolution. This results in a 30:1 gear ratio. This high ratio is why worm gear reducers are the go-to choice for slowing down high-speed electric motors (typically running at 1400 or 1800 RPM) to usable industrial speeds.
Physics dictates that power must be conserved (minus efficiency losses). When you reduce speed, you increase torque. Because worm gearboxes offer such drastic speed reduction, they provide massive torque multiplication.
This makes them perfect for starting heavy loads from a dead stop. A small motor paired with a 60:1 worm gearbox can move a load that would otherwise require a much larger, more expensive motor using a different gear type.
One of the most famous features of the worm gear transmission is self-locking. In many high-ratio designs (typically above 50:1), friction between the worm and the gear is high enough that the output shaft cannot drive the input shaft backwards.
If you turn off the motor on a conveyor belt, the weight of the load might try to roll the belt backward. A self-locking worm gearbox acts as a natural brake, holding the load in place. However, engineers should never rely solely on this for safety. Vibration can break the friction lock, so critical lifting applications still require a dedicated brake.
While the mechanism is simple, the material science behind it is critical to prevent the gearbox from grinding itself to pieces.
The worm shaft is the input component. It is almost always made of hardened steel. Because it experiences constant sliding friction and high stress, the threads are ground to a precise finish to minimize wear.
The worm gear is the output component. Unlike the steel shaft, the gear is typically made of bronze or copper alloy.
Why not steel-on-steel? If both the worm and the gear were hardened steel, the high friction and heat would cause the metals to gall (weld) together, destroying the box instantly. Bronze is softer and has natural lubricity. It acts as a sacrificial material, wearing down slowly and predictably over time while protecting the harder steel shaft.
Bearings in a worm gearbox have a tough job. The input bearings spin at high motor speeds, while the output bearings must withstand the full force of the torque. Crucially, the screwing action creates axial load (thrust) that tries to push the worm shaft out the back of the casing. High-quality gearboxes use tapered roller bearings or angular contact bearings to handle this thrust.
Housing: Usually cast iron for heavy industrial units or aluminum for lighter, corrosion-resistant applications.
Seals: Essential for keeping contaminants out, especially in dusty mines or wet food processing plants.
Lubrication: Because of the sliding friction, standard gear oil often isn’t enough. Worm gearboxes typically require high-viscosity synthetic oils (like PAG oils) that can withstand high heat without breaking down.
Choosing a worm drive gearbox is often a balancing act between cost, size, and efficiency.
High Torque Density: They pack a lot of power into a small space.
Simplicity: Fewer gears mean lower manufacturing costs compared to complex planetary systems.
Quiet Operation: The sliding contact is smoother and quieter than the clashing noise of spur gears.
Shock Absorption: The bronze gear material absorbs shock loads better than hardened steel gears, protecting the motor.
Self-Locking Potential: Can reduce the need for external braking systems in some applications.
The main downside is efficiency. Because the gears slide against each other, a significant portion of the input power is lost as heat.
Lower Efficiency: A helical gearbox might be 95-98% efficient. A high-ratio worm gearbox might only be 50-70% efficient.
Heat Generation: All that lost energy becomes heat. Worm gearboxes run hot and often require cooling fins or fans.
Wear: The bronze gear is designed to wear out. While they last a long time, they generally have a shorter service life than helical gears in 24/7 operations.
Despite their versatility, there are specific scenarios where a worm gear reducer is a poor choice.
If you are trying to minimize electricity usage across a large factory, the efficiency losses of worm gears add up. In these cases, a helical-bevel gearbox (which is 90° but more efficient) pays for itself over time.
Running a worm gearbox at very high input speeds (over 3000 RPM) or continuously without rest generates excessive heat. This can thin out the oil, leading to metal-on-metal contact and rapid failure.
If your application requires the load to “coast” to a stop or be manually pushed backward, the self-locking nature of the worm gear will fight you. In these cases, a low-ratio worm gear or a different gear type is necessary.
For the engineers and technical buyers, understanding the geometry is key to selection.
Worm gearboxes are unique because their ratio is determined by the number of threads (starts) on the worm, not just the diameter.
Formula: Ratio = (Teeth on Gear) / (Starts on Worm).
A 60-tooth gear with a 1-start worm = 60:1 ratio.
A 60-tooth gear with a 2-start worm = 30:1 ratio.
Single-Start: One continuous thread. High ratio, high self-locking capability, lower efficiency.
Multi-Start (2, 4, or more): Multiple threads running in parallel. Lower ratio, higher efficiency, less likely to self-lock.
The lead angle is the steepness of the worm thread. A steep angle (multi-start) allows the gear to slide easier, improving efficiency. A shallow angle (single-start) creates more friction, reducing efficiency but increasing the self-locking effect.
There is a direct correlation between ratio and efficiency.
Low Ratio (5:1 to 15:1): High efficiency (80-90%).
Medium Ratio (20:1 to 40:1): Medium efficiency (70-80%).
High Ratio (50:1 to 100:1): Low efficiency (50-60%).
Note: These figures are general estimates. Always check the manufacturer’s specific curves.
Where do worm gear reducers perform best in the real world?
This is the most common home for worm drives. They tuck neatly against the side of the conveyor, keeping aisles clear. For inclined conveyors, the self-locking feature helps prevent the belt from sliding back when stopped.
Safety is paramount here. While brakes are mandatory, the natural resistance of the worm gear adds a layer of safety and control, preventing gravity from accelerating the load downwards too quickly.
Mixing concrete or dough requires massive torque at slow speeds—the sweet spot for worm gears. The shock-absorbing bronze gear also helps cushion the drive against the “chugging” impact of mixing heavy materials.
Many manufacturers offer stainless steel worm gearboxes with IP69K ratings. Their smooth, curved housing (unlike the ribbed housing of some other gearboxes) is easy to clean, preventing bacteria traps in food processing facilities.
To get the most out of your investment, you need to watch for specific warning signs.
If a gearbox is too hot to touch (typically over 80°C / 176°F), the oil film may break down. This is the #1 killer of worm gears. Ensure you are using the correct ISO viscosity grade oil and that cooling fins are free of dust.
Pitting or “spalling” on the bronze gear teeth indicates overload or fatigue. If you find bronze flakes in the oil during a change, it’s a sign that the gear is wearing rapidly and may need replacement or up-sizing.
Leaking seals are often caused by heat hardening the rubber or by pressure buildup inside the case. Ensure the gearbox breather vent is clean and functioning to allow expanded air to escape.
Change oil regularly: Initial change after 500 hours, then every 2,500-5,000 hours depending on oil type.
Listen: A grinding noise suggests bearing failure; a knocking noise suggests tooth damage.
Check alignment: Misalignment between the motor and gearbox kills input bearings fast.
Don’t just buy the cheapest box. Follow this framework.
Calculate exactly how much torque your machine needs at the output shaft, not just the motor power.
If you run 24/7, oversized the gearbox or choose a model with better thermal capacity. If you only run intermittently (e.g., a gate opener), you can use a smaller, less efficient box.
If you need a 100:1 ratio, check the thermal rating. The gearbox might be mechanically strong enough to handle the load, but thermally too weak to dissipate the heat.
Do you need a hollow bore to slide onto a shaft? Do you need a solid output shaft? Is it a washdown environment requiring stainless steel?
Always apply a Service Factor (S.F.). For a worm gearbox on a uniform load running 8 hours a day, an S.F. of 1.0 is fine. For a heavy-shock crusher running 24/7, you might need an S.F. of 2.0 or higher (meaning the gearbox is rated for double the actual motor power).
They are primarily used in applications requiring high torque, low speed, and right-angle power transmission, such as conveyors, packaging machines, hoists, and gate operators.
Helical gearboxes typically operate at 95%+ efficiency. Worm gearboxes vary widely, from 90% at low ratios down to 50% or less at high ratios, due to sliding friction.
Most worm gearboxes with ratios above 50:1 are considered self-locking, meaning the output cannot drive the input. However, this should not replace a safety brake in critical lifting applications.
Common ratios include 5:1, 10:1, 15:1, 20:1, 30:1, 40:1, 50:1, and 60:1. Ratios up to 100:1 are possible in single stages.
With proper maintenance and sizing, they can last many years. However, the bronze worm wheel is a wear item and will eventually need replacement, typically sooner than all-steel gear types.
Yes, but thermal management is critical. You must ensure the gearbox is rated for “Continuous Duty” and may need synthetic oil or external cooling for high-load, continuous applications.
Synthetic Polyglycol (PAG) or Polyalphaolefin (PAO) oils are best for worm gears as they handle heat and friction better than mineral oils. Always check the manufacturer’s spec.
Choose a worm gearbox for compact space, right-angle drive, high ratios, and lower initial cost. Choose a helical gearbox for high efficiency, continuous 24/7 running, and energy savings over the long term.
The worm gearbox remains a powerhouse in the industrial world for good reason. It offers a blend of torque, compactness, and cost-effectiveness that is hard to beat for low-speed applications. While they have limitations regarding efficiency and heat, understanding these trade-offs allows engineers to utilize them effectively.
By correctly sizing your gearbox, selecting the right lubricant, and acknowledging the thermal characteristics, a worm gear reducer can provide years of reliable service. Whether you are designing a new conveyor system or replacing a failed unit, focusing on the details of ratio, material, and service factor will ensure you make the right choice for your machinery.
