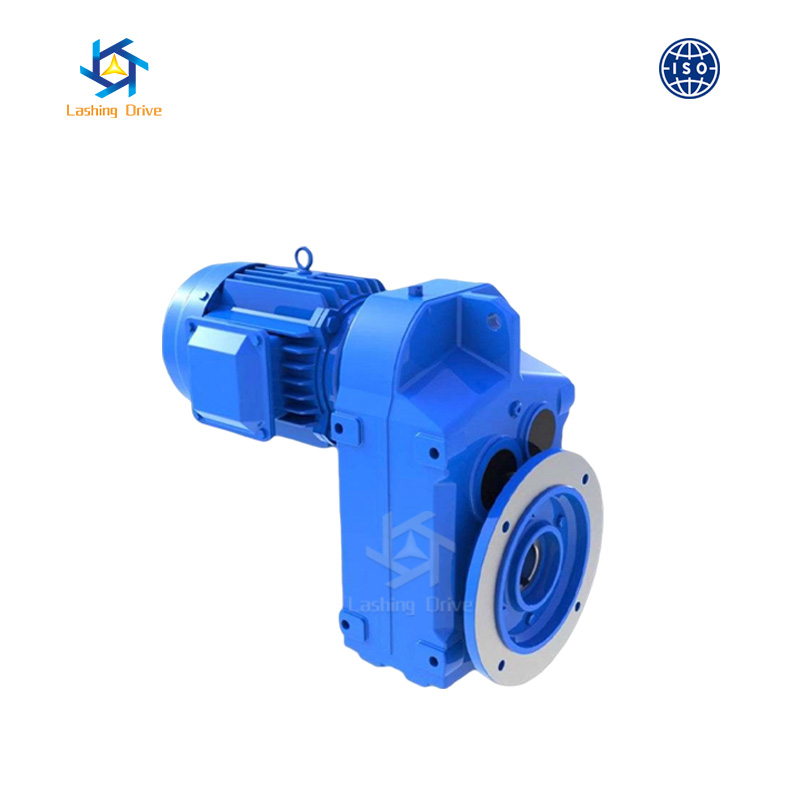

The F Series Parallel Shaft Helical Gear Reducer represents the pinnacle of mechanical engineering, transforming raw motor power into precise, relentless kinetic force. When you place your hand on the robust HT250 high-strength cast iron housing, you immediately sense the tactile rigidity and industrial-grade craftsmanship designed to withstand the most punishing manufacturing environments. Operating with a reassuringly smooth, low-decibel hum, this gearbox entirely eliminates the harsh grinding noises and aggressive vibrations typically associated with heavy-duty transmission units. The meticulously ground helical gears interlock with microscopic precision, ensuring that every ounce of input energy is translated into maximum output torque without wasteful thermal friction. By integrating this advanced reducer into your production lines, facility managers can instantly resolve chronic pain points related to spatial constraints and mechanical fatigue. Its exceptionally sleek, slim profile glides effortlessly into narrow installation footprints, breathing new life into cramped conveyor systems, agitators, and material handling networks. Beyond its impenetrable metallic exterior lies a fortress of mechanical reliability that drastically minimizes unexpected downtime, allowing your assembly lines to maintain a relentless, rhythmic pace day after day, ultimately driving your operational efficiency to unprecedented heights.
Technical Parameters
| Input power | 0.12kw~200kw |
| Output torque | 3.5N.m~22500N.m |
| Transmission ratio | 4.16~22323 |
| Price | 700~145000 yuan |
Engineered to elevate industrial efficiency, this gear reducer integrates cutting-edge metallurgy with precision machining. Every internal component is rigorously tested to ensure it meets the highest international mechanical standards, providing unparalleled stability for demanding mechanical systems and safeguarding your production targets.
Exceptional Load Bearing: Capable of handling extreme radial and axial forces without compromising internal shaft alignment.
Thermal Dissipation: The geometrically optimized housing accelerates heat transfer, keeping internal temperatures well within the 0 to 40 degree Celsius safety threshold.
Vibration Dampening: Advanced internal geometry absorbs operational shocks, protecting downstream equipment from destructive mechanical stress.
Corrosion Resistance: Treated with industrial-grade surface coatings that repel moisture, chemical vapors, and abrasive airborne particulates.
Precision Alignment: Manufactured with strict H7 hole and H6 shaft tolerances to guarantee a flawless, wobble-free mechanical connection.
Acoustic Engineering: Operates with a remarkably low decibel output, contributing to a safer and more comfortable factory floor environment.
When outfitting heavy machinery for material handling, mixing, or conveying, securing a transmission unit that will not falter under immense pressure is absolutely paramount. This gear reducer is purpose-built to conquer the most grueling load requirements, ensuring your critical operations never stall under heavy burdens.
Expansive Power Range: Accommodates input power scaling from a delicate 0.12kw up to a massive 200kw, offering ultimate scalability for diverse machinery.
Massive Torque Output: Delivers an astonishing output torque ranging from 3.5N.m to 22500N.m, easily driving heavy-duty industrial belts and colossal mixing blades.
Superior Transmission Efficiency: Achieves an impressive 94% to 96% energy transfer rate, drastically reducing electrical waste and lowering long-term utility expenditures.
Broad Ratio Spectrum: Features a transmission ratio span of 4.16 to 22323, granting engineers precise, granular control over operational speeds.
The longevity of any transmission system is strictly dictated by the metallurgical integrity of its core components. By utilizing premium alloys and advanced thermal processing, this reducer guarantees exceptional wear resistance and fatigue strength, thriving under harsh industrial conditions where lesser metals would rapidly degrade.
Premium Alloy Gears: Forged from superior 20CrMnTi alloy steel, providing the perfect balance of internal core toughness and external surface rigidity.
Advanced Carburizing & Quenching: Deep heat treatment elevates the gear surface hardness to a formidable HRC58-62, rendering the teeth virtually impervious to abrasive wear.
High-Strength Housing: Encased in an HT250 high-strength cast iron shell that acts as an impenetrable fortress against external impacts and severe torsional twisting.
Micro-Finished Surfaces: Gear teeth undergo meticulous grinding processes to ensure flawless meshing, preventing micro-fractures during sudden operational load spikes.
Anti-Fatigue Core Toughness: The specialized alloy composition ensures the internal gear structure absorbs microscopic shocks without snapping or deforming over years of use.
Industrial floor space is a premium asset, and bulky machinery often complicates facility layouts and structural planning. The F Series introduces an extra-slim, compact design architecture that resolves the chronic pain point of spatial limitations without sacrificing an ounce of mechanical driving power.
Parallel Shaft Architecture: Aligns the input and output shafts in a parallel configuration, drastically reducing the lateral footprint of the entire transmission assembly.
Extra-Slim Profile: The streamlined housing allows the unit to be tucked into incredibly narrow gaps, perfect for densely packed conveyor belts and automated sorting lines.
Optimized Weight Distribution: Engineered to eliminate unnecessary bulk, significantly reducing the structural strain on mounting brackets and supporting frameworks.
Procurement teams and facility engineers require versatile solutions that seamlessly integrate with existing infrastructure. This reducer champions a highly modular design philosophy, dramatically lowering the costs and labor hours associated with equipment matching and custom structural modifications.
Multi-Position Mounting: Fully supports diverse installation orientations, including foot-mounted, flange-mounted, and shaft-mounted configurations to suit any structural layout.
Universal Motor Compatibility: Features standard input configurations, allowing instantaneous pairing with AC motors, servo motors, brake motors, and specialized industrial variants.
Hollow Shaft Integration: Available with hollow shaft designs, enabling direct integration onto driven machinery without the need for cumbersome external couplings.
Solid Shaft Configurations: Offers robust solid shaft options for traditional power transmission setups requiring maximum shear strength.
Standardized Fastening: Employs globally recognized thread and flange dimensions, ensuring that your maintenance teams can perform installations rapidly using standard tooling.
Fluid leakage and excessive acoustic pollution are major liabilities in modern manufacturing environments. We have engineered this gear unit with uncompromising sealing technologies and precision acoustics to maintain a clean, quiet, and highly controlled operational atmosphere on your factory floor.
Elite Sealing Technology: Integrated with internationally renowned oil seals that create an impenetrable barrier, completely eradicating the risk of lubricant leakage and preventing dust ingress.
Premium Bearings: Outfitted with top-tier industrial bearings that ensure frictionless rotation, significantly reducing heat generation and extending the lifespan of the internal shafts.
Precision Gear Grinding: Manufactured to an elite 6-5 grade precision level, which translates directly to ultra-low vibration and a whisper-quiet operational hum.
Pre-Filled Lubrication: Ships factory-filled with Medium Load Industrial Gear Oil GB5903-86-220, ensuring the unit is completely plug-and-play the moment it arrives at your facility.
For operations situated in volatile or extreme environments, standard equipment simply will not suffice. This gear reducer is meticulously engineered to meet stringent global safety directives, providing absolute peace of mind for hazardous industrial sectors such as chemical processing and mining.
Explosion-Proof Readiness: Can be configured to fully comply with ATEX directives (2G/2D), making it exceptionally safe for environments with combustible dust or flammable gases.
Anti-Static Engineering: Incorporates advanced grounding mechanisms and conductive surface treatments to prevent the dangerous accumulation and discharge of static electricity.
High-Temperature Resilience: Engineered to accommodate specialized thermal-resistant lubricants and high-grade seals to operate flawlessly in environments with extreme ambient heat.
True industrial value is measured not just by the initial purchase price, but by the long-term operational expenses. This reducer is specifically designed to minimize maintenance interventions, drastically lowering your Total Cost of Ownership and maximizing continuous factory uptime.
Extended Lubrication Lifespan: Requires an initial oil change only after 300 to 400 hours of break-in operation, followed by a remarkably long routine cycle of 1500 to 2000 hours.
Simplified Oil Management: Features strategically placed vent plugs and easily accessible drain ports, allowing maintenance crews to perform fluid exchanges swiftly and cleanly.
Ultra-Low Failure Rate: The combination of hardened gears and robust cast iron housing ensures that emergency breakdowns and costly reactive repairs are virtually eliminated.
Accessible Vent Plugs: Designed with a top-mounted vent plug that ensures safe gas discharge during continuous operation, preventing internal pressure buildup.
Economic Efficiency: By drastically reducing the frequency of parts replacement and minimizing operational downtime, this unit delivers an exceptional return on investment.
Selecting the right manufacturing partner is just as critical as selecting the right equipment. As a dedicated supplier of industrial transmission solutions, we provide unparalleled manufacturing capacity, rigorous quality assurance, and comprehensive technical support to safeguard your entire supply chain.
Direct Manufacturer Advantage: By sourcing directly from our production lines, you bypass intermediary markups, securing premium industrial equipment at highly competitive price points.
Stringent Quality Assurance: Every single gear reducer undergoes a rigorous no-load test and a comprehensive structural inspection before it is cleared for global dispatch.
Scalable Production Capacity: Our advanced manufacturing facilities are fully equipped to handle massive volume orders, ensuring on-time delivery for your most critical facility upgrades.
Dedicated Technical Support: Our team of seasoned transmission engineers is always on standby to assist with complex integration queries, structural matching, and lifecycle maintenance planning.
Review our comprehensive technical FAQ section below to find detailed, expert answers regarding the installation, operation, and lifecycle maintenance of our parallel shaft gear units.
Before mounting the unit, it is imperative to meticulously clean the installation shaft, removing all dirt, debris, or surface bruises. You must also verify that the mating dimensions strictly meet the H7 hole and H6 shaft tolerances to ensure a secure, vibration-free fit. Additionally, always replace the highest position solid plug with the provided vent plug to allow safe gas discharge during operation.
Yes, the highly modular design allows for versatile installation. The unit can be securely mounted on any flat, shock-absorbing, and torsion-resistant support structure. It supports multiple mounting positions, including foot, flange, and shaft-mounted configurations to perfectly suit your specific spatial and structural requirements.
To maintain peak mechanical efficiency, the initial break-in oil change must be conducted after 300 to 400 hours of operation. Subsequent routine oil changes should be scheduled every 1500 to 2000 hours. In harsh working environments with high temperatures and large amounts of dust, we strongly advise inspecting the lubricant every two weeks.
The parallel shaft architecture offers an exceptionally slim structural profile. This compact design significantly reduces the lateral footprint of the machinery, making it the ultimate solution for facilities struggling with narrow installation spaces, such as tightly packed conveyor networks or dense mixing stations.
To ensure immediate operational readiness, the machine is factory-filled with premium Medium Load Industrial Gear Oil GB5903-86-220. This specific grade provides excellent viscosity and thermal stability, perfectly complementing the hardened 20CrMnTi alloy steel gears for smooth, low-friction power transmission.
"
As a premier manufacturer and direct supplier of heavy-duty transmission solutions, we present the F Series Parallel Shaft Helical Gear Reducer. Engineered for rigorous industrial integration and volume procurement, this unit delivers exceptional mechanical stability and continuous kinetic power for demanding operational environments.
Direct sourcing from the manufacturer ensures competitive procurement
Optimized specifically for high-torque industrial applications
Engineered to support continuous, heavy-duty operational cycles
The F Series Parallel Shaft Helical Gear Reducer represents the pinnacle of mechanical engineering, transforming raw motor power into precise, relentless kinetic force. When you place your hand on the robust HT250 high-strength cast iron housing, you immediately sense the tactile rigidity and industrial-grade craftsmanship designed to withstand the most punishing manufacturing environments. Operating with a reassuringly smooth, low-decibel hum, this gearbox entirely eliminates the harsh grinding noises and aggressive vibrations typically associated with heavy-duty transmission units. The meticulously ground helical gears interlock with microscopic precision, ensuring that every ounce of input energy is translated into maximum output torque without wasteful thermal friction. By integrating this advanced reducer into your production lines, facility managers can instantly resolve chronic pain points related to spatial constraints and mechanical fatigue. Its exceptionally sleek, slim profile glides effortlessly into narrow installation footprints, breathing new life into cramped conveyor systems, agitators, and material handling networks. Beyond its impenetrable metallic exterior lies a fortress of mechanical reliability that drastically minimizes unexpected downtime, allowing your assembly lines to maintain a relentless, rhythmic pace day after day, ultimately driving your operational efficiency to unprecedented heights.
| Parameter | Specification |
|---|---|
| Input Power | 0.12kw~200kw |
| Output Torque | 3.5N.m~22500N.m |
| Transmission Ratio | 4.16~22323 |
| Price | 700~145000 yuan |
| Operating Temperature | 0～40℃ |
| Hole Tolerance | H7 |
| Shaft Tolerance | H6 |
| Lubricating Oil | Medium Load Industrial Gear Oil GB5903-86-220 |
| First Oil Change | 300～400 hours |
| Routine Oil Change | 1500～2000 hours |
| Gear Material | 20CrMnTi Alloy Steel |
| Gear Surface Hardness | HRC58~62, Hardened Gear Surface |
| Housing Material | HT250 High-Strength Cast Iron |
| Installation | Foot-mounted, Flange-mounted, Shaft-mounted |
| Efficiency | Approx. 94%~96% |
Engineered to elevate industrial efficiency, this gear reducer integrates cutting-edge metallurgy with precision machining. Every internal component is rigorously tested to ensure it meets the highest international mechanical standards, providing unparalleled stability for demanding mechanical systems and safeguarding your production targets.
Exceptional Load Bearing: Capable of handling extreme radial and axial forces without compromising internal shaft alignment.
Thermal Dissipation: The geometrically optimized housing accelerates heat transfer, keeping internal temperatures well within the 0 to 40 degree Celsius safety threshold.
Vibration Dampening: Advanced internal geometry absorbs operational shocks, protecting downstream equipment from destructive mechanical stress.
Corrosion Resistance: Treated with industrial-grade surface coatings that repel moisture, chemical vapors, and abrasive airborne particulates.
Precision Alignment: Manufactured with strict H7 hole and H6 shaft tolerances to guarantee a flawless, wobble-free mechanical connection.
Acoustic Engineering: Operates with a remarkably low decibel output, contributing to a safer and more comfortable factory floor environment.
When outfitting heavy machinery for material handling, mixing, or conveying, securing a transmission unit that will not falter under immense pressure is absolutely paramount. This gear reducer is purpose-built to conquer the most grueling load requirements, ensuring your critical operations never stall under heavy burdens.
Expansive Power Range: Accommodates input power scaling from a delicate 0.12kw up to a massive 200kw, offering ultimate scalability for diverse machinery.
Massive Torque Output: Delivers an astonishing output torque ranging from 3.5N.m to 22500N.m, easily driving heavy-duty industrial belts and colossal mixing blades.
Superior Transmission Efficiency: Achieves an impressive 94% to 96% energy transfer rate, drastically reducing electrical waste and lowering long-term utility expenditures.
Broad Ratio Spectrum: Features a transmission ratio span of 4.16 to 22323, granting engineers precise, granular control over operational speeds.
The longevity of any transmission system is strictly dictated by the metallurgical integrity of its core components. By utilizing premium alloys and advanced thermal processing, this reducer guarantees exceptional wear resistance and fatigue strength, thriving under harsh industrial conditions where lesser metals would rapidly degrade.
Premium Alloy Gears: Forged from superior 20CrMnTi alloy steel, providing the perfect balance of internal core toughness and external surface rigidity.
Advanced Carburizing & Quenching: Deep heat treatment elevates the gear surface hardness to a formidable HRC58-62, rendering the teeth virtually impervious to abrasive wear.
High-Strength Housing: Encased in an HT250 high-strength cast iron shell that acts as an impenetrable fortress against external impacts and severe torsional twisting.
Micro-Finished Surfaces: Gear teeth undergo meticulous grinding processes to ensure flawless meshing, preventing micro-fractures during sudden operational load spikes.
Anti-Fatigue Core Toughness: The specialized alloy composition ensures the internal gear structure absorbs microscopic shocks without snapping or deforming over years of use.
Industrial floor space is a premium asset, and bulky machinery often complicates facility layouts and structural planning. The F Series introduces an extra-slim, compact design architecture that resolves the chronic pain point of spatial limitations without sacrificing an ounce of mechanical driving power.
Parallel Shaft Architecture: Aligns the input and output shafts in a parallel configuration, drastically reducing the lateral footprint of the entire transmission assembly.
Extra-Slim Profile: The streamlined housing allows the unit to be tucked into incredibly narrow gaps, perfect for densely packed conveyor belts and automated sorting lines.
Optimized Weight Distribution: Engineered to eliminate unnecessary bulk, significantly reducing the structural strain on mounting brackets and supporting frameworks.
Procurement teams and facility engineers require versatile solutions that seamlessly integrate with existing infrastructure. This reducer champions a highly modular design philosophy, dramatically lowering the costs and labor hours associated with equipment matching and custom structural modifications.
Multi-Position Mounting: Fully supports diverse installation orientations, including foot-mounted, flange-mounted, and shaft-mounted configurations to suit any structural layout.
Universal Motor Compatibility: Features standard input configurations, allowing instantaneous pairing with AC motors, servo motors, brake motors, and specialized industrial variants.
Hollow Shaft Integration: Available with hollow shaft designs, enabling direct integration onto driven machinery without the need for cumbersome external couplings.
Solid Shaft Configurations: Offers robust solid shaft options for traditional power transmission setups requiring maximum shear strength.
Standardized Fastening: Employs globally recognized thread and flange dimensions, ensuring that your maintenance teams can perform installations rapidly using standard tooling.
Fluid leakage and excessive acoustic pollution are major liabilities in modern manufacturing environments. We have engineered this gear unit with uncompromising sealing technologies and precision acoustics to maintain a clean, quiet, and highly controlled operational atmosphere on your factory floor.
Elite Sealing Technology: Integrated with internationally renowned oil seals that create an impenetrable barrier, completely eradicating the risk of lubricant leakage and preventing dust ingress.
Premium Bearings: Outfitted with top-tier industrial bearings that ensure frictionless rotation, significantly reducing heat generation and extending the lifespan of the internal shafts.
Precision Gear Grinding: Manufactured to an elite 6-5 grade precision level, which translates directly to ultra-low vibration and a whisper-quiet operational hum.
Pre-Filled Lubrication: Ships factory-filled with Medium Load Industrial Gear Oil GB5903-86-220, ensuring the unit is completely plug-and-play the moment it arrives at your facility.
For operations situated in volatile or extreme environments, standard equipment simply will not suffice. This gear reducer is meticulously engineered to meet stringent global safety directives, providing absolute peace of mind for hazardous industrial sectors such as chemical processing and mining.
Explosion-Proof Readiness: Can be configured to fully comply with ATEX directives (2G/2D), making it exceptionally safe for environments with combustible dust or flammable gases.
Anti-Static Engineering: Incorporates advanced grounding mechanisms and conductive surface treatments to prevent the dangerous accumulation and discharge of static electricity.
High-Temperature Resilience: Engineered to accommodate specialized thermal-resistant lubricants and high-grade seals to operate flawlessly in environments with extreme ambient heat.
True industrial value is measured not just by the initial purchase price, but by the long-term operational expenses. This reducer is specifically designed to minimize maintenance interventions, drastically lowering your Total Cost of Ownership and maximizing continuous factory uptime.
Extended Lubrication Lifespan: Requires an initial oil change only after 300 to 400 hours of break-in operation, followed by a remarkably long routine cycle of 1500 to 2000 hours.
Simplified Oil Management: Features strategically placed vent plugs and easily accessible drain ports, allowing maintenance crews to perform fluid exchanges swiftly and cleanly.
Ultra-Low Failure Rate: The combination of hardened gears and robust cast iron housing ensures that emergency breakdowns and costly reactive repairs are virtually eliminated.
Accessible Vent Plugs: Designed with a top-mounted vent plug that ensures safe gas discharge during continuous operation, preventing internal pressure buildup.
Economic Efficiency: By drastically reducing the frequency of parts replacement and minimizing operational downtime, this unit delivers an exceptional return on investment.
Selecting the right manufacturing partner is just as critical as selecting the right equipment. As a dedicated supplier of industrial transmission solutions, we provide unparalleled manufacturing capacity, rigorous quality assurance, and comprehensive technical support to safeguard your entire supply chain.
Direct Manufacturer Advantage: By sourcing directly from our production lines, you bypass intermediary markups, securing premium industrial equipment at highly competitive price points.
Stringent Quality Assurance: Every single gear reducer undergoes a rigorous no-load test and a comprehensive structural inspection before it is cleared for global dispatch.
Scalable Production Capacity: Our advanced manufacturing facilities are fully equipped to handle massive volume orders, ensuring on-time delivery for your most critical facility upgrades.
Dedicated Technical Support: Our team of seasoned transmission engineers is always on standby to assist with complex integration queries, structural matching, and lifecycle maintenance planning.
Review our comprehensive technical FAQ section below to find detailed, expert answers regarding the installation, operation, and lifecycle maintenance of our parallel shaft gear units.
Before mounting the unit, it is imperative to meticulously clean the installation shaft, removing all dirt, debris, or surface bruises. You must also verify that the mating dimensions strictly meet the H7 hole and H6 shaft tolerances to ensure a secure, vibration-free fit. Additionally, always replace the highest position solid plug with the provided vent plug to allow safe gas discharge during operation.
Yes, the highly modular design allows for versatile installation. The unit can be securely mounted on any flat, shock-absorbing, and torsion-resistant support structure. It supports multiple mounting positions, including foot, flange, and shaft-mounted configurations to perfectly suit your specific spatial and structural requirements.
To maintain peak mechanical efficiency, the initial break-in oil change must be conducted after 300 to 400 hours of operation. Subsequent routine oil changes should be scheduled every 1500 to 2000 hours. In harsh working environments with high temperatures and large amounts of dust, we strongly advise inspecting the lubricant every two weeks.
The parallel shaft architecture offers an exceptionally slim structural profile. This compact design significantly reduces the lateral footprint of the machinery, making it the ultimate solution for facilities struggling with narrow installation spaces, such as tightly packed conveyor networks or dense mixing stations.
To ensure immediate operational readiness, the machine is factory-filled with premium Medium Load Industrial Gear Oil GB5903-86-220. This specific grade provides excellent viscosity and thermal stability, perfectly complementing the hardened 20CrMnTi alloy steel gears for smooth, low-friction power transmission.
"
