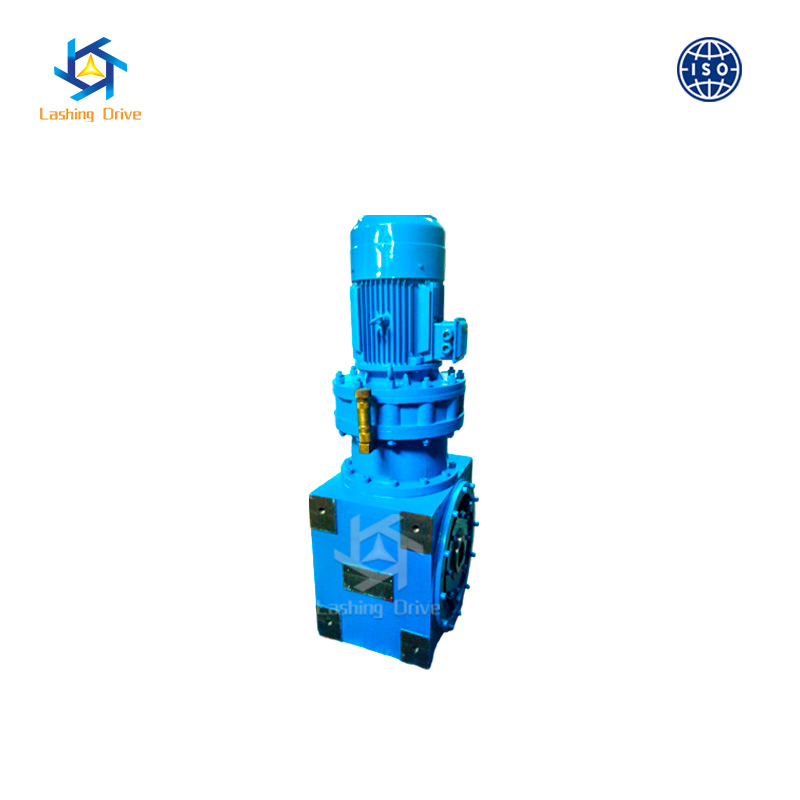

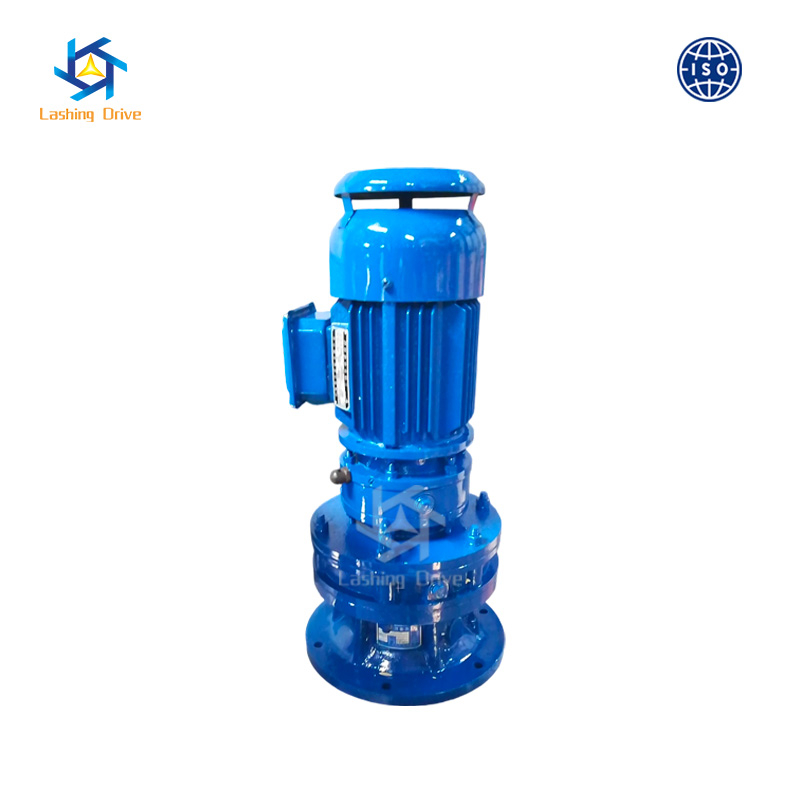

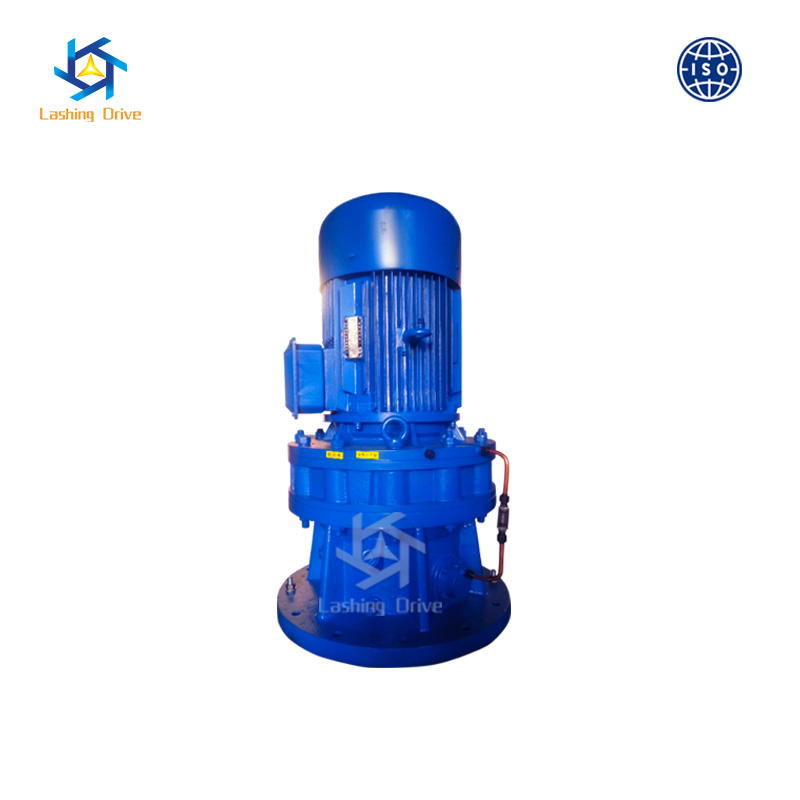

The Planetary Cycloidal Pinwheel Reducer is a cutting-edge transmission device integrating planetary transmission principles and cycloidal pinwheel meshing technology. Available in X and X8000 series, it is designed via computer-optimized processes and advanced domestic & international manufacturing techniques, with all performance indicators reaching world-class levels. This reducer stands out for its compact structure, high reduction ratio, and strong overload capacity, serving as a core driving/reduction component in industrial machinery, replacing traditional cylindrical gear and worm gear reducers in most scenarios.
Boasts a high reduction ratio (single-stage: 9~87; double-stage: 121~5133; multi-stage: up to 658503) and transmission efficiency over 90% (single-stage up to 94%). The rolling meshing between cycloidal gears and pin wheels minimizes friction, ensuring smooth operation and low noise.
Main components are made of high-carbon chromium steel, quenched to HRC58~62 for high strength and wear resistance. The multi-tooth meshing design (67% meshing surface) provides 500% overload capacity, avoiding tooth breakage even under extreme conditions.
Input and output shafts are coaxial, achieving a small volume and light weight. Suitable for both horizontal and vertical installation, with optional explosion-proof configurations for hazardous environments.
Parameter | Details |
Input Power | 0.09kW ~ 173kW |
Output Torque | 20N.m ~ 60800N.m |
Transmission Ratio Adjustment Range | 6 ~ 658503 |
Basic Models | X Series: 13 types; X8000 Series: 27 types |
Combined Models | X Series: 29 types; X8000 Series: 50 types |
Price Range (CNY) | 490 ~ 130000 |
The Planetary Cycloidal Pinwheel Reducer is widely applied in:
Petroleum & Chemical: Pump and compressor transmission systems
Environmental Protection & Water Treatment: Mixing equipment for wastewater treatment
Mining & Metallurgy: Conveyor and hoist drive mechanisms
Textile & Printing: Production line speed control for fabrics and prints
Construction & Power Generation: Heavy machinery and generator sets
Food & Pharmaceutical: Sanitary-grade mixing and conveying equipment
Horizontal reducers: Ensure horizontal operation; maximum inclination angle ≤15° to avoid lubrication issues.
Vertical reducers: Secure the front mounting flange tightly to prevent vibration; output shaft should not face downward more than 15°.
Align the input/output shafts with the connected equipment (coaxiality < coupling tolerance) to avoid shaft displacement.
Use 150# extreme pressure gear oil (-10℃ ~ 0℃) or 220# extreme pressure gear oil (0℃ ~ 40℃); replace after initial 100~300 hours of operation.
Subsequent oil changes: Every 3~6 months (8-hour working system); shorten intervals under harsh conditions.
Grease-lubricated models: Replace grease every 6 months; ensure no oil pump failure in vertical reducers.
Developed by a professional team from the former Tianjin Reducer Factory, ensuring authentic "Tianjin cycloidal reducer" quality.
All products comply with ISO standards and undergo strict factory testing for performance and durability.
18-month warranty for the entire machine, covering manufacturing defects and component failures.
24/7 technical support via phone/email; on-site maintenance services available for large-scale projects.
Common reasons include eccentric bearing malfunctions, overload operation, insufficient/wrong lubricating oil, or improper assembly.
Yes. The reducer supports continuous duty operation in both forward and reverse directions, suitable for frequent start-stop scenarios.
Avoid overload operation, reduce intermittent impacts, ensure sufficient lubrication, and remove internal foreign objects promptly.
Looking for a high-torque, precision transmission solution? Contact us to learn more about the Planetary Cycloidal Pinwheel Reducer, request technical specifications, or get a competitive quote. Our experts will customize the best solution for your industrial needs—reply within 24 hours!
