Chemical processing plants operate under extreme pressure. High-torque requirements define daily operations. Corrosive atmospheres constantly threaten equipment integrity. In these aggressive environments, operators have zero tolerance for unexpected downtime. A single mechanical failure quickly halts entire production lines. You need robust, unfailing drive mechanisms to sustain continuous output. The Heavy-Duty HB Gearbox provides a highly modular, structurally rigid solution. It encompasses the H-series parallel shaft and B-series right-angle configurations. Engineers designed these specific units to conquer harsh industrial realities. This article delivers a transparent, spec-driven framework. Plant engineers and procurement managers can use this guide to evaluate HB gear units for complex chemical applications. You will learn exactly how these gearboxes match your most demanding operational requirements.
Application Match: HB gearboxes are optimally engineered for chemical reactors, agitators, mixers, and heavy-duty centrifugal pumps.
Material Durability: Built with 20CrMnTi alloy gears (HRC 58-62) and highly resistant cast iron (HT250) housings to withstand continuous 24/7 shock loads.
Environmental Resilience: Advanced sealing configurations (labyrinth seals) and specialized surface treatments protect against chemical vapor corrosion and contamination.
Retrofit Capability: Highly modular design allows for direct drop-in replacement or reverse-engineering compatibility with major legacy European brands.
Gearbox failure carries massive financial and safety consequences in continuous chemical processing. When a drive unit unexpectedly fails, you face immediate production halts. These sudden stops often ruin entire batches of sensitive compounds. Ruined batches lead to significant material waste and expensive disposal procedures. Furthermore, compromised drive systems can trigger hazardous leaks. Toxic chemical spills threaten facility-wide safety and violate strict environmental regulations. Plant managers must treat mechanical reliability as a fundamental safety pillar rather than a mere maintenance metric.
Environmental stressors constantly attack plant machinery. Drive units endure extreme temperature fluctuations day and night. Airborne corrosive chemicals settle on housings and degrade standard materials. In many zones, equipment must comply strictly with hygiene protocols or explosion-proof (ATEX) standards. A standard commercial gearbox cannot survive these conditions. You need specialized engineering to prevent vapor ingress and internal corrosion. Every exposed surface and seal must actively resist chemical degradation to ensure operational safety.
Load characteristics further complicate drive selection in this sector. Mixing high-viscosity polymers requires massive starting torques. As chemical reactions progress, fluid viscosity often changes rapidly. These changes create severe variable dynamic loads on the mixing shafts. Gear units must absorb sudden shock loads without suffering tooth fractures or bearing damage. If a drive system lacks sufficient structural rigidity, dynamic forces will destroy its internal components. Selecting a properly rated industrial reducer prevents premature mechanical breakdowns.

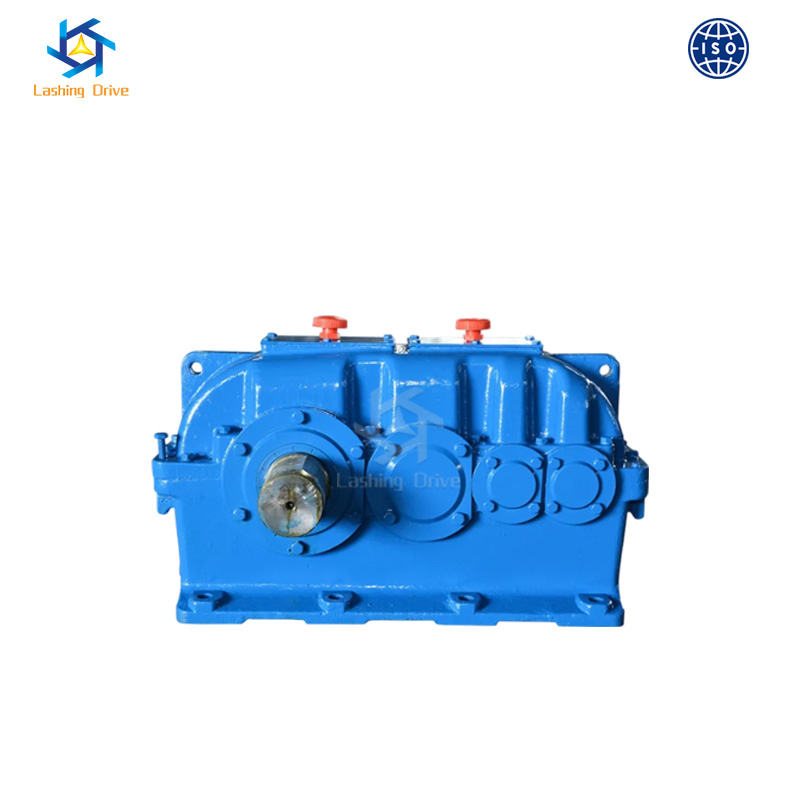

The Heavy-Duty HB Gearbox utilizes a highly modular architecture. The H-Series features a parallel shaft design. The B-Series offers a right-angle bevel helical configuration. Both series provide one to four-stage transmission options. This modularity maps perfectly to precise speed reduction needs across various plant sectors. You can easily achieve your exact required output speed by selecting the appropriate stage configuration. This standardized approach simplifies engineering layouts.
Metallurgy dictates lifespan under heavy loads. Manufacturers build these gears using premium low-carbon alloy steel. Typical grades include 20CrMnTi or 20CrNiMo. The manufacturing process involves rigorous carburizing and quenching treatments. These thermal processes yield essential hardness parameters. You get a surface hardness of HRC 58-62 to prevent wear. Simultaneously, the core hardness remains at HRC 33-40. This softer core allows the gear teeth to absorb shock loads without snapping.
Thermal and acoustic management strongly influence plant environments. HB housings feature large surface areas to dissipate heat efficiently. Engineers optimize cooling fans to direct airflow across these thermal fins. These design choices establish excellent objective performance baselines. Operational noise levels remain exceptionally low, typically measuring ≤60~68dB. Strict oil temperature rise limits restrict operating heat growth to <50°C. Lower operating temperatures protect synthetic lubricants from early thermal breakdown.
Contamination prevention remains vital in chemical zones. These units feature IP65-equivalent protection. Multi-lip oil seals or labyrinth seals protect both input and output shafts. Labyrinth seals create a complex physical barrier against airborne particles. They effectively prevent chemical ingress from destroying internal bearings. They also stop lubricant leakage. Keeping oil inside and chemicals outside guarantees smooth, long-term transmission reliability.
Technical Parameter | Standard Specification | Chemical Industry Benefit |
|---|---|---|
Gear Metallurgy | 20CrMnTi / 20CrNiMo | High wear resistance and shock load absorption. |
Surface Hardness | HRC 58-62 | Prevents tooth pitting during high-torque startup. |
Core Hardness | HRC 33-40 | Maintains flexibility to resist fracture under dynamic loads. |
Acoustic Output | ≤60~68dB | Meets strict occupational safety and noise regulations. |
Temperature Rise | <50°C | Prevents lubricant degradation in hot plant zones. |
Ingress Protection | IP65 Equivalent | Blocks corrosive chemical vapors and stops oil leaks. |
Different chemical plant assets impose distinct mechanical demands. The Heavy-Duty HB Gearbox adapts to these specific equipment profiles through targeted design features. Evaluating these applications highlights the importance of custom-tailored drive mechanics.
Reactors and Agitators: Chemical reactors demand robust vertical mounting options. The gear units utilize reinforced output shafts. They also feature extended bearing spans. These modifications handle extreme axial and radial thrust loads generated by large stirring paddles. Vertical rigidity prevents shaft deflection, which otherwise destroys seals and bearings.
Industrial Mixers and Blenders: High-viscosity blending requires massive torque density. Mixers push through thick, sticky compounds. Low-backlash features (typically ≤20 Arcmin) provide smooth, consistent rotational force. Minimizing backlash prevents destructive jarring when mixer loads suddenly shift or reverse.
Heavy-Duty Pumps and Decanters: Moving corrosive fluids requires continuous duty reliability. Parallel shaft configurations deliver high-efficiency transmission, often exceeding 98.5%. This high efficiency ensures continuous, uninterrupted fluid transfer. Reliable pumping maintains precise pressure levels across the entire processing facility.
Cooling Systems and Draft Fans: Continuous high-speed rotation amplifies minor imbalances. Draft fans require exceptionally low vibration levels, strictly kept below 20µm. High structural rigidity in the gearbox housing absorbs inherent fan vibrations. This stability protects surrounding infrastructure from fatigue stress over time.
Plant engineers often default to familiar Tier-1 European legacy brands. However, standardized modular footprints now offer compelling alternatives. The modular architecture of the HB series simplifies your global supply chain. Instead of tracking countless custom parts, you manage a streamlined inventory of interchangeable modules. Reducing required spare parts inventory frees up warehouse space and working capital. Modularity means you can quickly swap components during unexpected breakdowns. This agility easily competes with the rigid structures of older legacy brands.
Supply chain backlogs present a major bottleneck for facility expansions. Legacy brand manufacturers frequently force buyers into months-long waiting periods. Heavy-duty drives built using unitized components solve this problem. CNC-machined standardized parts enable significantly faster assembly and delivery. Accelerated lead times keep your plant upgrade schedules on track. OEM customization also happens much faster. You can request specific sealing or coating options without resetting the entire production timeline. Fast delivery minimizes vulnerable downtime periods.
System compatibility determines the success of any retrofit project. You cannot afford to alter concrete mounting pads or piping infrastructure. The HB series excels in direct drop-in replacement scenarios. Manufacturers match exact shaft dimensions to fit your existing plant architecture seamlessly. Options include solid shafts, hollow shafts equipped with shrink discs, and splined outputs. This dimensional flexibility ensures seamless retrofitting. Engineers can replace failing legacy units using reverse-engineering compatibility. You upgrade your mechanical reliability without redesigning your entire production floor.
Proper installation and configuration secure the longevity of your investment. Careful planning mitigates operational risks and prevents premature failures. Engineering teams must follow strict best practices when deploying new mechanical drives in chemical plants.
Calculating Service Factors: Always select the correct service factor before installation. Base this calculation on specific chemical load classifications. Uniform loads require lower service factors than moderate or heavy shock loads. Also, account for continuous 24/7 operating hours. A properly rated service factor absorbs unexpected torque spikes without damaging gear teeth.
Lubrication Strategies: Aggressive environments require specialized lubrication. Standard mineral oils fail quickly under chemical exposure. Specify chemical-resistant synthetic lubricants. If your plant processes pharmaceuticals or food-grade compounds, demand FDA or EU compliant oils. Consider installing automated oil monitoring systems. These sensors detect viscosity changes and metal particulates early.
Surface Treatments: Standard paint strips away quickly in corrosive atmospheres. Highlight the absolute necessity of specialized external coatings. Specify epoxy paints or PTFE external treatments. These barriers resist site-level corrosive agents, including airborne acids and caustic washdowns. Protecting the cast iron housing prevents structural degradation.
Alignment and Installation: Misalignment destroys bearings faster than any other operational error. Emphasize the critical need for precision laser alignment. Whether executing a horizontal or vertical installation, laser tools ensure perfect shaft coupling. Perfect alignment eliminates destructive radial forces. This attention to detail prevents premature bearing failure and seal leaks.
The Heavy-Duty HB Gearbox provides a verifiable, spec-matched alternative for demanding chemical plant applications. Operators can confidently replace aging legacy units with these highly modular, rigidly constructed drives. Evaluating core metrics like metallurgy, advanced sealing, and component modularity guarantees optimal operational safety. Upgrading to optimized H-series and B-series units protects your facility against catastrophic, unexpected downtime. Robust drive mechanisms keep hazardous processes contained and continuous.
Engineering and procurement teams should take immediate action to secure plant reliability. Review your current maintenance logs to identify problematic drive stations. Request 3D CAD models to verify spatial compatibility with your existing equipment. Schedule load calculation consultations to determine precise service factors for your heaviest agitators. Commissioning custom retrofit assessments will streamline your next major plant upgrade.
A: HB gearboxes utilize a highly standardized, modular inventory system. This unitized manufacturing approach drastically reduces assembly times. While traditional legacy brands often require several months for delivery, HB series units frequently ship much faster. This rapid deployment capability minimizes facility downtime and accelerates critical plant upgrades.
A: Yes. The units feature specialized anti-corrosive external coatings, including multi-layer epoxy and PTFE treatments. They also utilize IP-rated multi-lip or labyrinth seals. This combination actively repels high-pressure chemical washdowns and protects internal components from harsh outdoor weather conditions.
A: The HB series employs universal modular dimensional standards designed for drop-in replacement. Manufacturers provide extensive custom output shaft options. You can easily specify solid shafts, splined connections, or hollow shafts utilizing shrink discs. This flexibility ensures exact compatibility with your current infrastructure.
A: HB gearboxes integrate seamlessly with advanced diagnostic sensors required for ATEX compliance. Operators can easily install PT100 temperature sensors directly into the housing to monitor oil heat. Additionally, the units accommodate vibration monitoring probes, allowing plant engineers to track mechanical health safely in explosion-proof zones.
A: The standard OEM warranty covers the unit against manufacturing defects for 12 months under non-human-fault conditions. The modular design ensures that spare parts remain highly accessible globally. This streamlined aftermarket support guarantees quick component replacements and extends the reliable service life of your drive equipment.
