How to Choose a Planetary Gear Reducer

Selecting the wrong gearbox often leads to severe mechanical consequences. You might face premature mechanical failure, servo motor burnout, or unnecessary overspending. Engineers frequently buy more precision than they actually need. This practice wastes budget and complicates system integration unnecessarily. This guide strips away marketing claims to offer real clarity. We provide a practical, engineering-first framework. You will learn how to evaluate, size, and shortlist a Planetary Gear Reducer based on actual application demands. We focus strictly on applied physics, measured load profiles, and realistic environmental constraints. By following these structured steps, you will confidently match gearbox capabilities to your exact operational requirements. You will discover how to balance mechanical strength against thermal limits effectively. We will also explore when to choose standard models versus specialized heavy-duty units. Let us dive into the core principles of gearbox selection.

Key Takeaways

• Base your initial sizing on acceleration torque and continuous torque, not just motor horsepower.

• Backlash requirements dictate cost; do not over-specify precision if the application does not strictly require it.

• Specific industrial applications demand specialized configurations, such as the P Series Planetary Gear Reducer for modular heavy-duty tasks or the NGW Series Planetary Gear Reducer for metallurgical and mining applications.

• Thermal capacity is just as critical as mechanical capacity, especially in continuous duty cycles.

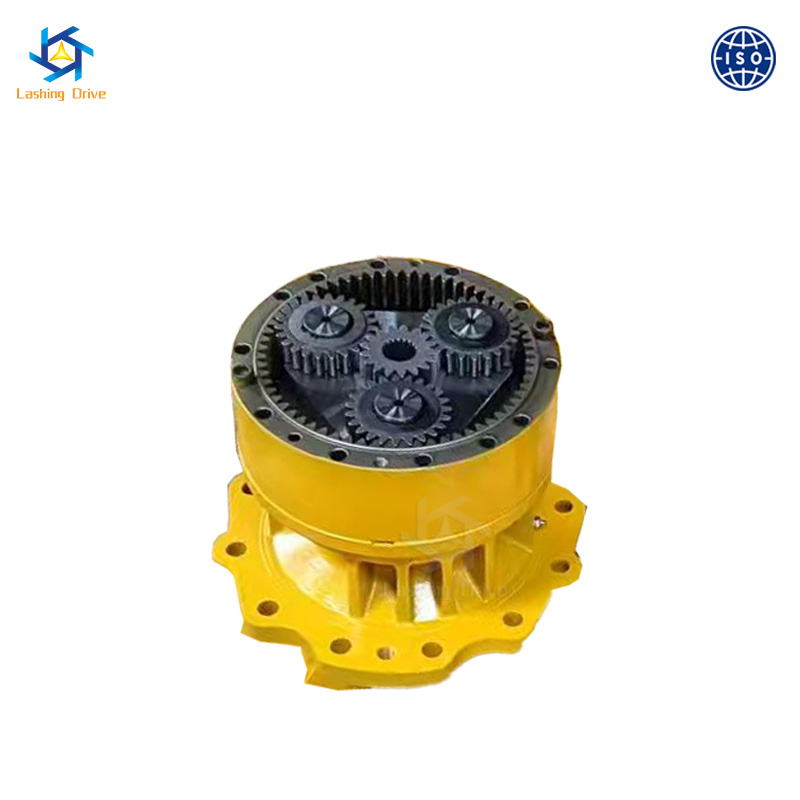

1. Defining Core Performance Criteria: Torque, Speed, and Loads

You must begin your selection process by evaluating torque demands. First, calculate the continuous operating torque required to keep your load moving. Next, calculate the maximum acceleration torque. Do not forget to factor in emergency stop events. Emergency stops produce massive torque spikes, often reaching two to three times your continuous load. The gearbox's rated peak torque must comfortably exceed your system's absolute maximum spike. Do not rely solely on motor horsepower ratings. Horsepower ignores dynamic load profiles and instantaneous torque demands.

You must match the gearbox reduction ratio to the optimal RPM of your motor. This achieves your desired output speed efficiently while keeping the motor in its peak torque band. Understand the physical limitations of your gear stages. Single-stage planetary designs typically max out at a 10:1 reduction ratio. If you require higher reduction ratios, you must utilize multi-stage designs. Multi-stage units increase overall length and slightly reduce mechanical efficiency.

Evaluate the physical forces acting directly on the output shaft. Radial loads push perpendicularly against the shaft. Axial loads push parallel to the shaft direction. Specify robust bearings if your design employs pulleys, belts, or rack-and-pinion systems. These mechanical setups generate high overhung loads. Standard deep-groove ball bearings might fail prematurely under such stress. Consider tapered roller bearings to handle extreme radial and axial forces safely.

Apply a realistic service factor (Sf) to your calculations. Industry standards typically recommend service factor values between 1.0 and 3.0. Your specific service factor depends on daily operating hours. It also depends on shock loads and start-stop frequencies. A machine running continuously with high shock loads demands a higher service factor. Proper application of this multiplier prevents chronic under-sizing.

2. Evaluating Precision and Backlash Requirements

Precision directly influences positioning accuracy in any mechanical system. We measure gearbox backlash in arcminutes. One arcminute equals 1/60th of a degree. Reversing applications demand very low backlash. Robotics and CNC machining centers need instantaneous direction changes. High backlash in these systems causes lost motion and severe positioning errors. Continuous uni-directional rotation forgives higher backlash easily. Standard conveyors rarely require micro-precision gearing.

Do not over-specify precision. It dramatically increases manufacturing costs. High-precision gears require tighter machining tolerances and specialized assembly techniques. Evaluate your true operational needs using a strict cost-to-benefit analysis.

Table: Backlash Precision Tiers and Application Suitability

Structural rigidity impacts system response times significantly. Torsional stiffness measures how much the internal gearbox components twist under load. Low stiffness causes mechanical resonance in dynamic servo applications. This resonance complicates motor tuning and degrades performance. Ensure your selected unit offers high torsional stiffness if you operate highly dynamic systems with rapid acceleration profiles.

3. Selecting the Right Configuration: General vs. Industry-Specific Series

Space constraints typically dictate your final form factor choice. Inline models save space radially but extend the footprint axially. Right-angle configurations fit perfectly into tight radial spaces. However, right-angle units utilize an extra bevel gear stage to turn the power 90 degrees. This extra stage drops efficiency slightly. It also increases the initial component cost and introduces additional backlash into the system.

Heavy industrial tasks require robust modularity and massive torque capability. The P Series Planetary Gear Reducer provides exceptional torque density for these exact scenarios. Engineers frequently deploy it for hoisting, industrial mixing, and bulk material handling. Its modular design allows flexible mounting orientations. You achieve high power transmission in a relatively compact footprint. The splined shaft connections handle heavy, intermittent loads effortlessly.

Mining and metallurgy present entirely different mechanical challenges. You face extreme shock loads, abrasive dust, and continuous vibration. The NGW Series Planetary Gear Reducer tackles these harsh environments effectively. It features specialized hard-tooth surfaces for superior wear resistance. Its robust internal load distribution handles severe operational abuse without catastrophic failure. The NGW series holds a strong, proven track record in heavy construction machinery.

4. Implementation Risks: Thermal Limits, Environment, and Maintenance

Engineers often size gearboxes based purely on mechanical strength. This represents a dangerous engineering trap. Continuous operation generates significant internal heat. Churning lubricants and gear friction create massive thermal loads. The gearbox must dissipate this heat safely into the surrounding air. Operating above lubricant temperature limits degrades the oil rapidly. This breakdown leads to rapid gear wear and bearing failure. Always compare the thermal rating against your continuous duty cycle.

Compare lifetime grease against circulating oil lubrication strategies. Lifetime grease lubrication requires virtually zero maintenance. It suits standard automation and intermittent duties very well. Oil bath or circulating systems manage high heat better. High-speed, heavy-duty applications strictly require fluid oil lubrication. Oil handles continuous churning without breaking down prematurely, provided you respect its thermal ceiling.

Evaluate environmental protections carefully before installation. Determine the required IP rating for your facility. Washdown environments need IP67 or higher to prevent water ingress. High-heat operations benefit greatly from specialized Viton seals. Dusty or highly corrosive environments demand rugged surface treatments. Stainless steel housings or thick epoxy coatings prevent external degradation. Evaluate breather plugs meticulously to ensure they do not become ingress points for ambient moisture.

5. Shortlisting Logic and Vendor Evaluation

Examine the ease of motor integration when comparing vendors. Your supplier must offer straightforward adapter plates. Look for modern collet clamping systems. These mechanisms grip the motor shaft securely without requiring traditional keyways. They eliminate fretting corrosion and handle reversing loads flawlessly. Demand guaranteed concentricity from your supplier. Poor concentricity ruins motor bearings quickly. Ensure mechanical compatibility with your specific servo or stepper motor brand.

Follow a strict verification process before issuing a final purchase order. Complete these critical next steps to ensure successful integration:

1. Request fully detailed 3D CAD models. Use them for spatial, mounting, and clearance verification.

2. Ask vendors for transparent efficiency curves and empirical thermal limit data.

3. Verify lead times for standard production units and confirm the availability of critical replacement parts.

Do not skip these basic verification steps. They prevent costly integration delays later during machine assembly.

Conclusion

Summarize your decision process methodically. Start by defining your exact continuous and peak loads. Determine your minimum acceptable precision level based on real positioning requirements. Select the correct series framework based on your industry type. Verify thermal limits against your expected duty cycle continuously. Validate all environmental protections before signing off on the design.

We strongly encourage all buyers to share their actual load profiles directly with engineering teams. Provide your detailed duty cycle data to qualified sales engineers. Expert validation prevents critical sizing mistakes. Collaboration ensures your next gearbox deployment achieves total reliability.

FAQ

Q: What is the difference between a single-stage and double-stage planetary gear reducer?

A: A single-stage reducer uses one gear set and typically handles reduction ratios up to 10:1. A double-stage reducer stacks two gear sets to achieve ratios up to 100:1. Adding a second stage increases the gearbox length, reduces mechanical efficiency slightly, and increases torsional backlash.

Q: How do I know if I need a P Series or an NGW Series planetary gear reducer?

A: The NGW series is the traditional standard for Chinese mining, metallurgy, and high-shock environments due to its rugged hard-tooth design. The P series is a modern, modular, highly configurable heavy-duty standard ideal for industrial hoisting, mixing, and applications requiring flexible mounting configurations.

Q: Why is my planetary gearbox overheating?

A: Overheating stems from exceeding thermal limits. Common root causes include running a continuous duty cycle without adequate cooling, improper lubrication levels, degraded oil, or running input speeds far beyond the manufacturer's rated maximum RPM. High ambient temperatures also restrict thermal dissipation.

Q: Can I mount a planetary gear reducer in any orientation?

A: While many grease-lubricated models are omni-directional, oil-lubricated models usually require specific mounting orientations. Changing the orientation alters internal oil levels. This can starve upper bearings of lubrication or submerge breather plugs, causing leaks and catastrophic pressure buildup.
