Mechanical seal failures in highly corrosive chemical processing environments pose severe risks to facility safety. These unexpected failures frequently lead to hazardous toxic leaks. They cause extensive unplanned downtime. They also trigger serious environmental compliance breaches. To combat these risks, operators increasingly rely on advanced sealless technology. A properly specified Magnetic Drive Agitator serves as the definitive solution to these operational threats. However, this equipment only succeeds when you precisely match the wetted materials to your specific chemical media. Ignoring fluid compatibility can compromise the entire containment shell. We will explore how to evaluate different material categories for your exact corrosive applications. You will learn how to shortlist appropriate metals, plastics, and ceramics based on real-world operational parameters. Ultimately, this guide provides an evidence-based framework. It will help you specify the right components for long-term reliability.
Zero-Leakage Assurance: Magnetic drive technology eliminates dynamic seals, but system integrity relies entirely on the chemical compatibility of the isolation shell and wetted components.
Material Hierarchy: Selection dictates cost and lifespan; choices range from high-grade stainless steels and fluoroplastics (PTFE/PFA) to specialized alloys (Hastelloy, Titanium).
Holistic Evaluation: True chemical compatibility extends beyond the impeller and shaft to internal bearings (e.g., Silicon Carbide) and temperature thresholds.
Traditional mechanical seals present a massive liability in aggressive chemical settings. These conventional designs rely on physical contact between rotating faces. Aggressive acids rapidly degrade these contact points. You face immense hidden burdens when managing these systems. Technicians must perform frequent maintenance. Operators must constantly monitor complex barrier fluid systems. A sudden seal failure releases dangerous chemicals into the atmosphere. This creates severe environmental health and safety (EHS) risks for your team.
Sealless technology removes these specific failure points. A magnetic drive system uses a synchronous magnetic coupling mechanism. Outer drive magnets rotate outside the vessel. They magnetically engage an inner rotor assembly. A static isolation shell completely separates these two magnetic arrays. You eliminate the physical shaft penetration entirely. The chemical media remains hermetically sealed inside your mixing tank.
This design shifts your primary engineering challenge. You no longer worry about dynamic seal wear. Instead, success depends entirely on material compatibility. You must establish clear success criteria for your installation. A successful implementation significantly extends the Mean Time Between Failures (MTBF). It ensures strict regulatory compliance in hazardous processing zones. It also completely eliminates any risk of batch contamination from barrier fluids.
You must carefully evaluate the primary materials exposed to your chemical media. We categorize these wetted materials into four distinct groups. Each group offers specific chemical resistance profiles. Each group also presents unique mechanical limitations.
Fluoroplastics offer exceptional versatility for chemical processing. We frequently line wetted components with Polytetrafluoroethylene (PTFE) or Perfluoroalkoxy (PFA). These polymers deliver broad-spectrum chemical resistance. They easily handle strong acids like hydrochloric acid and sulfuric acid. They also resist aggressive alkalis.
You must watch out for their mechanical limitations. Fluoroplastics possess lower mechanical strength compared to metals. They enforce strict operational temperature limits. High temperatures can cause polymer deformation. They also show vulnerability when processing highly abrasive slurries. Sharp particles can gouge the soft plastic lining.
High-performance alloys excel in punishing industrial environments. Materials like Hastelloy and Inconel resist extreme temperatures. They handle high-pressure mixing applications flawlessly. They provide unmatched defense against localized corrosion risks. You typically deploy them to prevent pitting and crevice corrosion in chloride-rich media.
These advanced alloys require significant initial resource allocation. You must also perform precise grade matching. For example, Hastelloy C-276 performs differently than Hastelloy C-22 in certain oxidizing environments. Incorrect grade selection leads to premature equipment failure.
Some chemical profiles destroy even the best nickel-based alloys. Specialty metals step in for these extreme scenarios. Titanium and Tantalum offer supreme resistance to highly oxidative environments. They survive continuous exposure to wet chlorine. They handle specific mixed-acid applications where Hastelloy rapidly degrades.
Specifying these metals involves specialized fabrication requirements. Machining Titanium demands highly controlled manufacturing environments. Tantalum typically requires custom surface cladding techniques. You must reserve these materials for your most extreme chemical challenges.
Austenitic stainless steels serve as the industry baseline. Engineers widely specify 316L and 904L for mildly corrosive environments. They perform perfectly in standard organic solvents. They dominate sanitary applications within the biopharmaceutical sector. They offer excellent surface finish capabilities.
Their primary limitation lies in halogen exposure. Standard 316L remains highly susceptible to chloride stress corrosion cracking. Even low concentrations of chlorides at elevated temperatures will fracture these steel components.
You cannot rely on guesswork when matching materials. We developed a highly scannable decision matrix to guide your selection process. This framework cross-references common corrosive categories with proven wetted materials.
Corrosive Media Category | Typical Chemical Examples | Preferred Wetted Materials | Critical Engineering Considerations |
|---|---|---|---|
Strong Acids | Sulfuric, Hydrochloric, Nitric | PTFE/PFA Lining, Tantalum | Evaluate concentration and temperature strictly. High-temp sulfuric demands Tantalum. |
Strong Alkalis | Sodium Hydroxide, Potassium Hydroxide | 316L SS, Nickel Alloys | Stainless steel works at lower temperatures. High-temperature caustic requires Nickel alloys. |
Halogens & Chlorides | Wet Chlorine, Brine, Sodium Hypochlorite | Hastelloy C-276, Titanium | Standard 316L fails rapidly here. Titanium excels in wet chlorine but fails in dry chlorine. |
High-Purity / Sanitary | WFI Water, Biological Buffers | Electropolished 316L, FDA PTFE | Materials must withstand repeated Clean-in-Place (CIP) thermal shocks. |
When you encounter strong acids, temperature plays a critical role. We evaluate PTFE linings versus Tantalum based entirely on concentration and heat. Strong alkalis require a different approach. You can comfortably use stainless steel at ambient temperatures. However, hot sodium hydroxide demands advanced Nickel alloys.
Halogens and chlorides destroy basic metallurgy. You must highlight the failure risks of standard 316L stainless steel here. We necessitate Hastelloy C-276 or Titanium to prevent immediate stress cracking. For high-purity environments, biological corrosion presents unique challenges. Pharmaceutical buffer solutions require FDA-approved PTFE or electropolished 316L. You must always incorporate thermal shock considerations for sterilization cycles.
Operators frequently focus entirely on the main impeller. They overlook a critical internal component. Wetted shafts and impellers only represent half the equation. The internal bearings sit directly within your corrosive fluid. They support the rotating magnetic assembly. If the bearings fail, the entire magnetic coupling crashes.
We consider Silicon Carbide (SiC) the absolute industry standard for these bearings. SiC delivers extreme hardness. It offers total chemical inertness across nearly all pH levels. It provides exceptional long-term wear resistance. However, SiC has notable vulnerabilities. It shatters under extreme thermal shock. It also cannot survive prolonged dry-running conditions.
Certain aggressive chemicals cause leaching issues in standard SiC. You must evaluate alternative technical ceramics. Zirconia offers excellent toughness. It provides specific chemical compatibility where SiC might degrade. We use a simple chart to compare these two primary bearing materials.
Bearing Material | Primary Advantage | Key Vulnerability |
|---|---|---|
Silicon Carbide (SiC) | Universal chemical inertness and extreme hardness | Highly susceptible to thermal shock and dry-running |
Zirconia Ceramic | Higher fracture toughness and impact resistance | Lower maximum temperature limits than SiC |
You must also carefully evaluate the bearing flush mechanisms. The equipment design must allow the corrosive product to continuously lubricate these internal bearings. The fluid pathways must promote constant circulation. A poor design allows chemical accumulation. This leads to dangerous crystallization inside the bearing journals. Crystallization destroys the tight bearing tolerances rapidly.

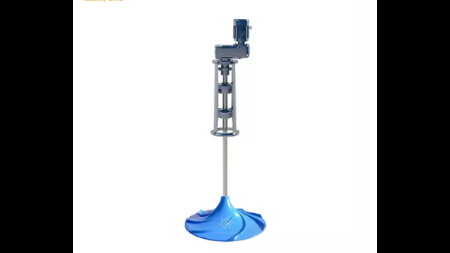

Even perfectly matched materials can fail under poor operational conditions. When you specify a Mixer Agitator for heavy applications, you face specific implementation risks. You must proactively manage these environmental factors to protect your equipment.
Temperature Derating: Elevated temperatures exponentially increase chemical corrosion rates. Heat aggressively weakens non-metallic linings like PTFE and PFA. You cannot rely on ambient temperature resistance charts. You must apply strict temperature derating calculations to ensure the isolation shell retains its pressure rating.
Viscosity and Torque Limitations: Heavy, viscous corrosive media generate immense drag. They require much higher magnetic coupling torque. High torque requires larger drive magnets. This impacts the sizing and material thickness of the isolation containment shroud. Thicker metallic shells induce more heat loss.
Regulatory and Safety Compliance: Corrosive environments frequently overlap with explosive atmospheres. You must secure ATEX certification for any equipment placed in these zones. For pharmaceutical applications, your wetted plastics and elastomers must carry FDA and USP Class VI certifications. Missing these certifications guarantees immediate compliance failures.
We often see operators ignore the impact of eddy currents. Metallic containment shells generate significant heat during magnetic transmission. If you mix highly volatile chemicals, this localized heating poses a serious threat. You might need to specify non-metallic composite shells to eliminate eddy currents entirely.
You must rigorously vet your equipment manufacturers. A poor manufacturing process compromises even the best materials. We recommend a structured evaluation process to shortlist your potential partners.
Verify Exact Testing Protocols: You cannot accept verbal material guarantees. Demand certified Material Test Reports (MTRs) for all alloy components. Require Positive Material Identification (PMI) testing prior to shipment. This proves you received the exact metal grade you specified.
Demand Application Engineering Support: A trustworthy vendor does not just sell parts. They act as your engineering partner. They should run proprietary chemical compatibility software. They must provide Finite Element Analysis (FEA). FEA proves the design handles your specific torque and temperature limits.
Require a Proven Proof of Concept: Look for documented case studies. The vendor must prove their MTBF claims. They should demonstrate success in identical or significantly more severe chemical environments.
Do not skip these verification steps. A single substandard weld on a Hastelloy impeller can trigger catastrophic corrosion. Your vendor must demonstrate complete control over their fabrication and testing procedures.
Matching materials to your exact chemical profile remains paramount. You must account for temperature variations and fluid viscosity. This meticulous matching process is the only way to secure the safety of your facility. It ensures the long-term reliability of your sealless equipment.
Avoid generic, one-size-fits-all specifications. Let the specific chemical properties dictate your metallurgy and polymer choices. Never compromise on the quality of your internal bearings or containment shells.
We strongly encourage engineers to consult with dedicated application specialists. Provide them with your exact fluid composition. Detail your specific gravity and operational temperature extremes. This transparency allows them to generate a highly customized material recommendation for your precise needs.
A: Generally, no. While chemically resistant, PTFE is soft. Abrasive slurries require hardened alloy impellers and highly robust Silicon Carbide bearings to prevent premature wear.
A: 316L is sufficient for mild applications but will suffer rapid pitting and stress corrosion cracking in chloride-rich or highly acidic environments, where Hastelloy provides superior structural integrity.
A: Yes. Metallic shells (like Hastelloy) induce eddy currents, generating heat and energy loss. Non-metallic shells (like Carbon Fiber reinforced PTFE) eliminate eddy currents but have lower pressure/temperature thresholds.
A: Rapid temperature changes during steam-in-place (SIP) can cause thermal shock to ceramic bearings or degrade certain elastomers. Materials must be rated for both the chemical buffer and the extreme thermal cycling.
