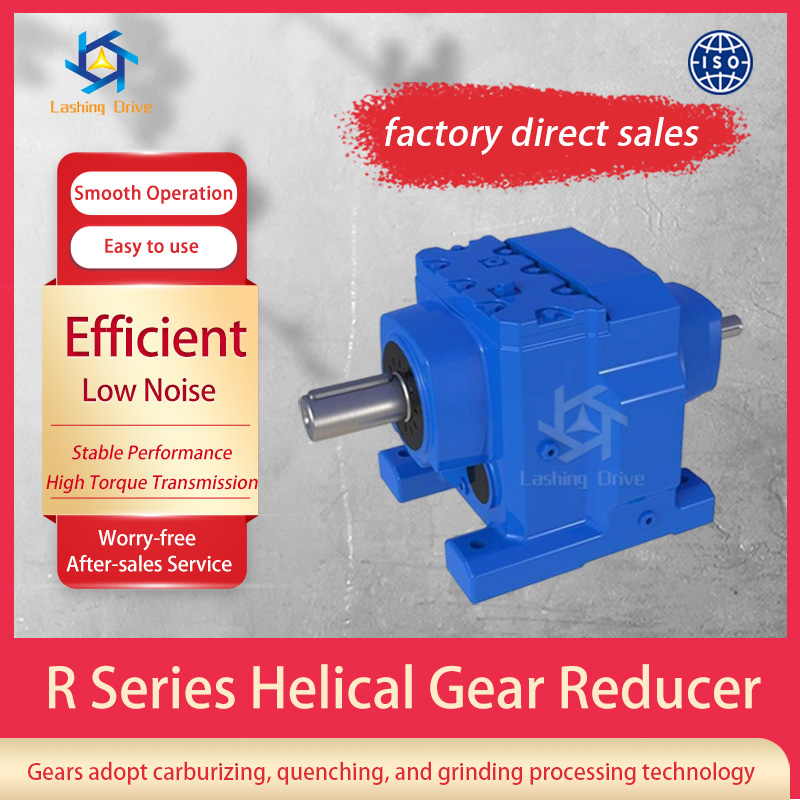

The R Series Helical Gear Reducer represents the pinnacle of mechanical engineering, designed to transform raw kinetic energy into precise, controlled motion. When you run your hand along its exterior, you will immediately notice the cold, unyielding solidity of the high-strength cast iron housing, meticulously cast to withstand the harshest industrial environments without deformation. This robust outer shell houses an intricate symphony of premium alloy steel gears. During operation, rather than the deafening roar typical of lesser machinery, this reducer emits a remarkably low, steady hum—a direct testament to its precision-ground teeth and optimal meshing profile.
By integrating this advanced drive mechanism into your production line, you are fundamentally upgrading your operational reliability. The meticulously machined internal components drastically reduce mechanical friction, meaning significantly less heat generation and virtually no burnt oil odor in your facility. Instead, your workflow benefits from uninterrupted, fluid power transmission that minimizes mechanical wear on your expensive peripheral equipment. This translates directly into fewer unexpected halts on your factory floor, empowering your facility to meet aggressive production targets with unwavering consistency, safety, and profound peace of mind.
Technical Parameters
| Input power | 0.09kw~160kw |
| Output torque | 2N.m~23200N.m |
| Transmission ratio | 1.65~21342 |
| Price | 600~150000 yuan |
Achieving peak operational efficiency requires components that go beyond basic functionality. The R Series Helical Gear Reducer is engineered with distinct advantages designed to resolve common mechanical bottlenecks and elevate your entire production ecosystem.
Uncompromising Structural Integrity: The heavy-duty cast iron chassis acts as an impenetrable shield, protecting internal components from external impacts while providing superior thermal dissipation during continuous, high-load operation.
Acoustic and Vibrational Refinement: Advanced gear grinding techniques ensure a flawlessly smooth tooth surface, resulting in whisper-quiet operation that drastically improves the acoustic environment of your facility and reduces worker fatigue.
Adaptable Integration: Whether your spatial constraints require vertical stacking or horizontal alignment, the versatile mounting options allow for immediate, hassle-free deployment without costly structural modifications to your plant.
Superior Seal Technology: Equipped with premium double-lip oil seals, the unit completely eradicates the risk of lubricant leakage, keeping your workspace pristine and preventing premature internal wear caused by fluid loss.
To fully appreciate how this gear reducer transforms industrial power transmission, we must examine its capabilities across multiple engineering and operational dimensions. Every aspect has been optimized to deliver tangible improvements to your daily operations.
Matching dynamic power requirements is the first step to mechanical synergy. This reducer offers an expansive input power range from 0.09kw to 160kw and delivers a staggering output torque of up to 23200N.m. With a highly granular transmission ratio spanning 1.65 to 21342, it provides the exact kinetic control required for anything from delicate automated assembly lines to massive, heavy-duty material handling systems.
Floor space is a premium asset in any facility. The coaxial and in-line layout creates an incredibly compact footprint, allowing you to maximize your spatial utilization. By offering foot-mounted, flange-mounted, vertical, and horizontal configurations, it seamlessly adapts to your existing architecture, eliminating the need for expensive structural retrofitting and minimizing installation downtime.
Longevity is dictated by what lies beneath the surface. The rugged cast iron housing encases premium alloy steel helical gears, which undergo rigorous carburizing, quenching, and precision grinding. Achieving a hardened tooth surface of HRC58-62, these internal components exhibit extraordinary fatigue resistance, ensuring they maintain their structural integrity even after years of relentless, high-load operation.
Energy loss is a hidden drain on profitability. The meticulously engineered helical gear meshing achieves an outstanding mechanical efficiency of up to 96%. This high-precision manufacturing guarantees ultra-low backlash and reduces operational noise to below 65 decibels. The result is a remarkably stable, vibration-free power transfer that protects your connected machinery from erratic mechanical stress.
Industrial environments are notoriously unforgiving. Built specifically for continuous, heavy-load conditions, this unit thrives in demanding applications like large-scale conveyors, industrial mixers, and heavy lifting cranes. Its robust double-lip oil seal prevents contamination, and its robust architecture can withstand rigorous daily demands across various manufacturing sectors.
True value is measured over the lifespan of the equipment. By utilizing top-tier internal components, the frequency of necessary interventions drops dramatically. We provide comprehensive guidance on proper storage—ensuring an enclosed, dust-free environment between +5°C and +40°C—along with detailed installation protocols. This proactive approach minimizes unexpected downtime and significantly reduces your overall operational expenditure.
Sourcing critical mechanical components requires a partner who understands the high stakes of industrial manufacturing. As an established manufacturer and dedicated supplier, we focus entirely on delivering reliability, precision, and long-term value to your operations.
Direct-from-Source Quality Control: By overseeing every stage of the manufacturing process, we guarantee that every unit leaving our facility meets strict international engineering tolerances, ensuring you receive a flawless product every time.
Rigorous Testing Protocols: Before any reducer reaches your loading dock, it undergoes exhaustive torque, vibration, and acoustic testing. You can confidently install our equipment knowing it will perform exactly as specified under maximum load.
Streamlined Supply Chain: We eliminate unnecessary intermediaries, allowing us to offer highly competitive pricing structures without ever compromising on the caliber of our raw materials or the precision of our craftsmanship.
Expert Technical Support: From pre-purchase torque calculations to post-installation maintenance strategies, our team of seasoned engineers provides the actionable insights you need to optimize your mechanical systems.
We understand that integrating new transmission equipment involves careful technical evaluation. Below are detailed answers to the most critical questions posed by engineering and procurement professionals.
To preserve the integrity of the internal components and seals, the unit must be stored in an enclosed, dust-free environment free from any corrosive substances. The ambient temperature must be strictly maintained between +5°C and +40°C, with relative humidity not exceeding 80%. It is imperative to protect the packaging from impact, vibration, and heavy pressure.
If the original packaging remains completely intact, the maximum standard storage period after receiving the equipment is 6 months. If the equipment is not in immediate use but has undergone necessary maintenance such as cleaning and lubrication, it can be stored for an additional period not exceeding three months under the strict environmental conditions mentioned above.
Units are typically treated with a protective anti-rust coating and a baseline preservative for transit. However, depending on your specific mounting position and operational environment, you must verify and fill the unit with the correct grade and volume of industrial gear oil as detailed in the provided operation and maintenance instructions prior to initial startup.
Absolutely. The housing is engineered for maximum versatility, supporting foot-mounted, flange-mounted, vertical, and horizontal installations. This flexibility ensures that you can seamlessly retrofit the unit into your current mechanical layout without requiring extensive modifications to your foundational structures.
Upon arrival, conduct a thorough visual inspection before moving the unit. Check the packaging for any signs of deformation, compression, or damage. Carefully open the document package without destroying the bottom plate to ensure all standard supply facilities, installation manuals, and maintenance instructions match the packing list. If any discrepancies or damages are noted, contact the manufacturer immediately to prevent safety hazards during installation.
