Technical Parameters

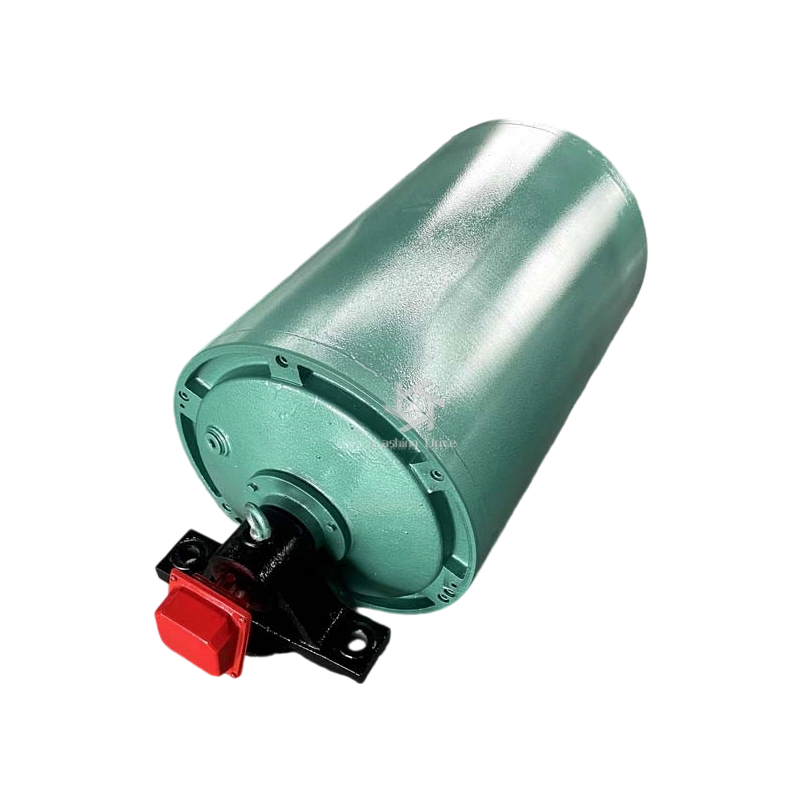

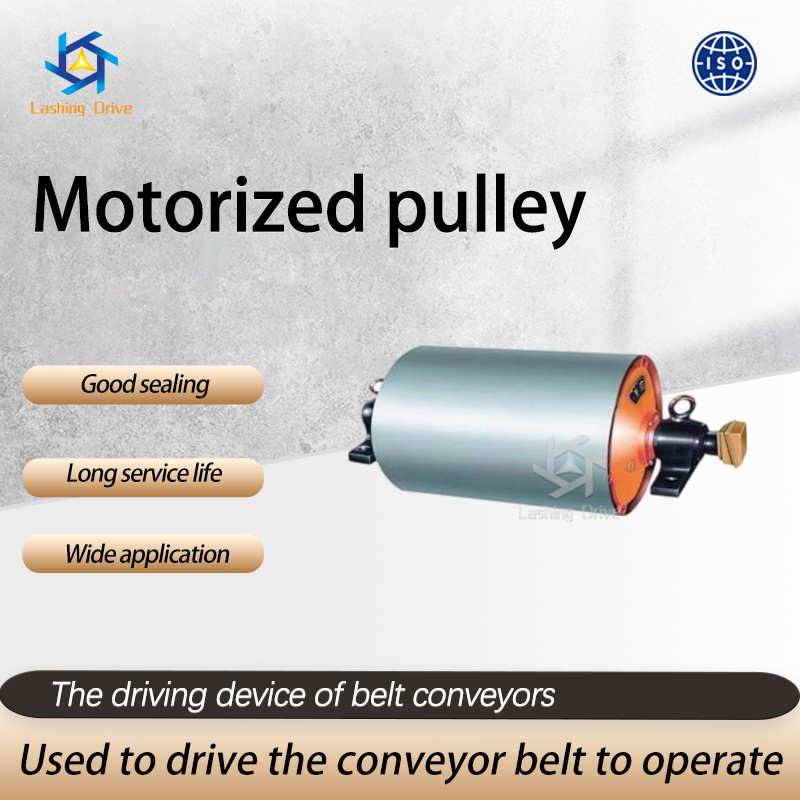

TJ Series Oil-Immersed Motorized Pulley
This series is a product introduced from JOKI company in Denmark, which has international advanced level and adopts international standards. It has advanced structure, direct oil cooling motor, good cooling and heat dissipation, smooth transmission, long service life, low noise and allows for high temperature rise. It is widely used in agriculture, commerce, postal and telecommunications, food industry, tobacco industry, automotive industry, cement industry, mining industry, tourism industry. The motorized pulley s can function as self-contained enclosed drive units or serve as power sources for powered roller conveyors, winches and other equipment.
| Input power | 0.1kw~90kw |
Drum diameter | φ 110mm~φ 1000mm |
Drum width | 250mm~2000mm |
Belt speed | 0.06m/s~4.25m/s |
Price | 3500~100000 yuan |

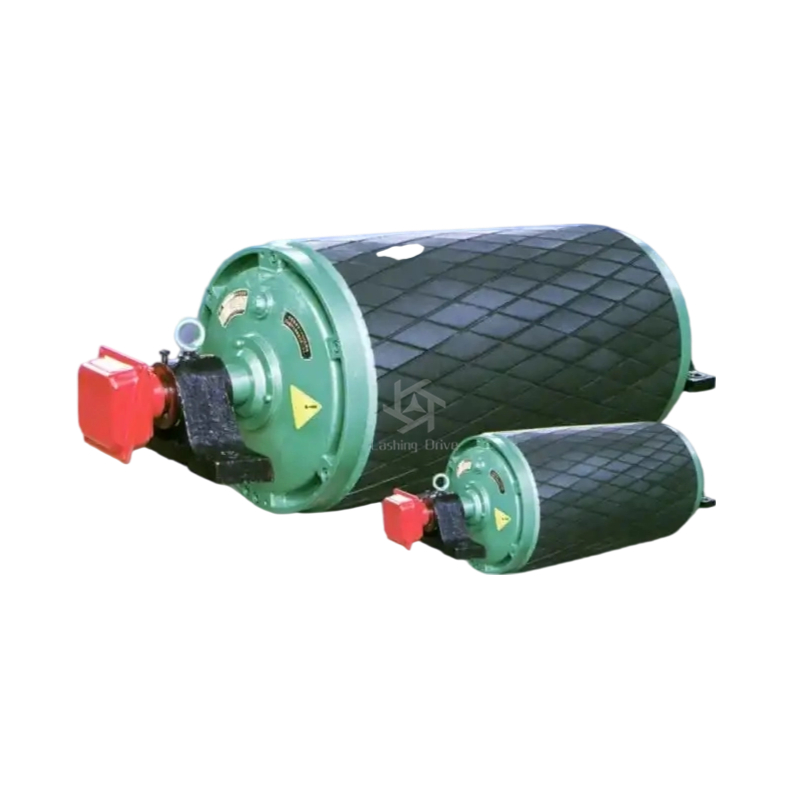

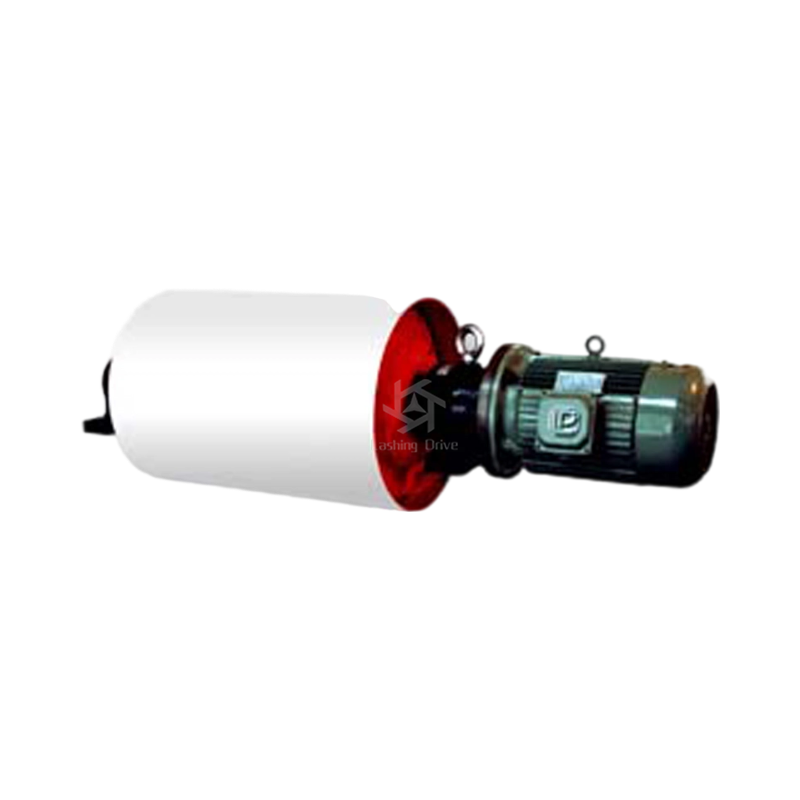

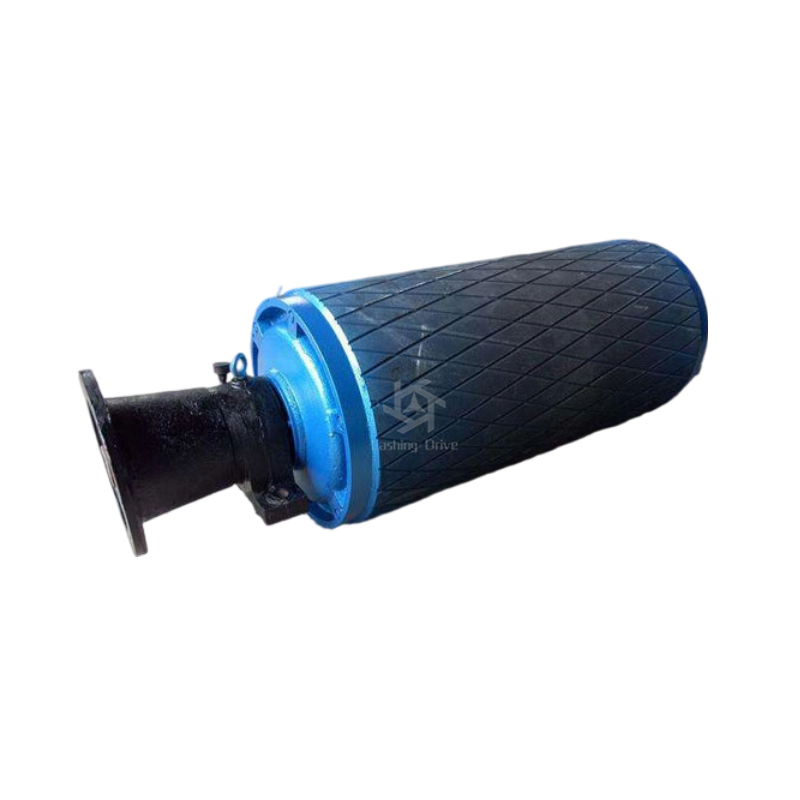

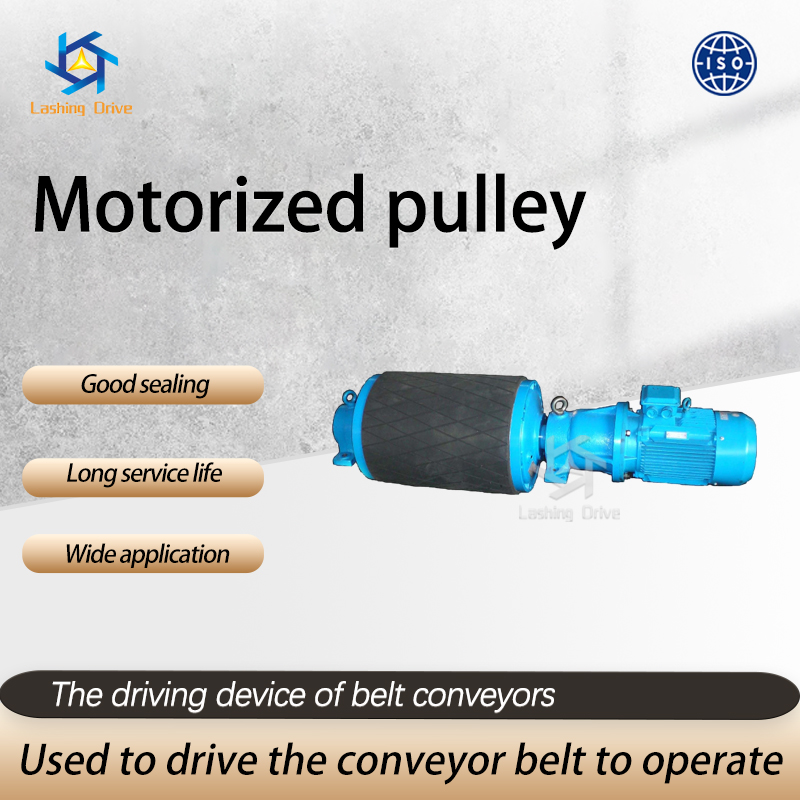

WD Series External Motorized Pulley
This series is a new product developed based on the introduction of advanced technology from Denmark's JOKI company to produce TJ Motorized Pulley. The product has an advanced structure, and the gears and front and rear shafts are made of high-quality alloy steel. It has the characteristics of smooth transmission, light weight, low energy consumption, equipped with standard series motors, suitable for general working conditions. For occasions with explosion-proof requirements, explosion-proof motors can be used. This product is an ideal driving device for large and medium-sized belt conveyors.
Drum diameter | φ500mm~φ800mm |
Drum width | 500mm~1400mm |
Belt speed | 0.5m/s~4m/s |
Price | 3500~100000 yuan |

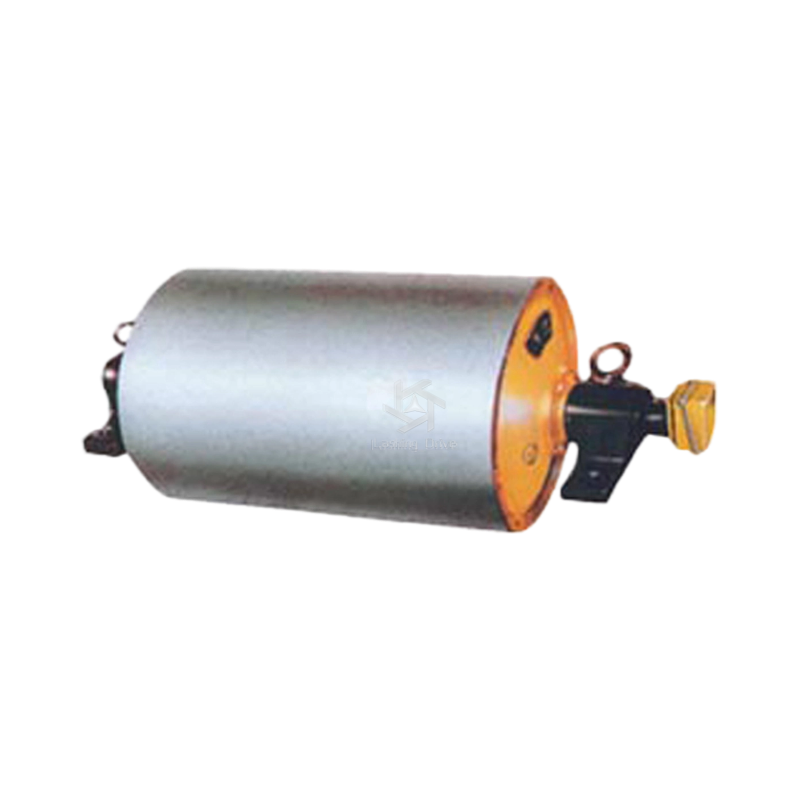

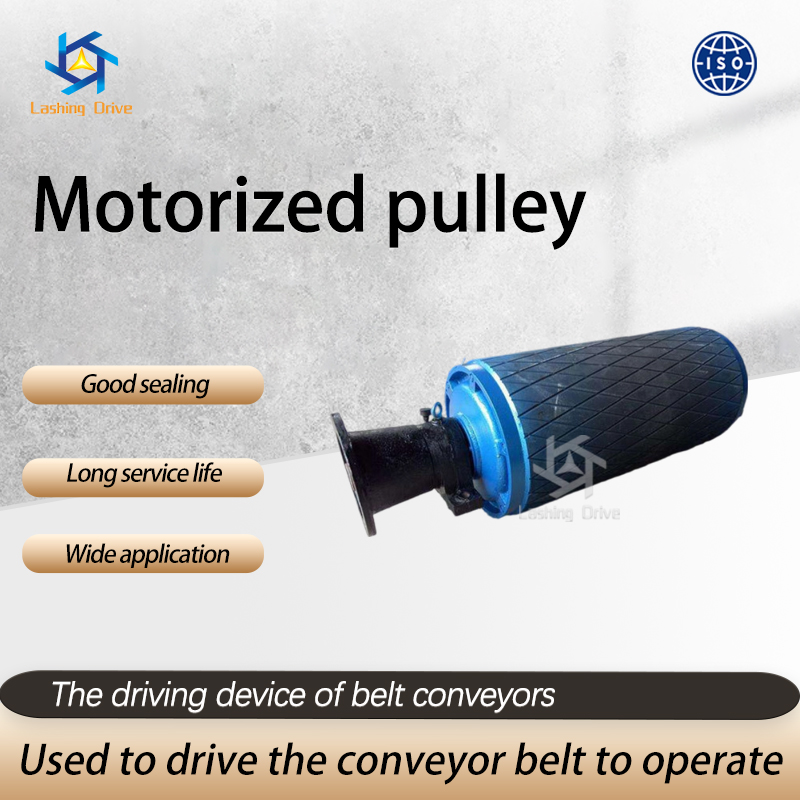

TDY75 Oil-Cooled Motorized Pulley
TDY75 oil-cooled motorized pulley is a driving device for belt conveyors, used to drag the conveyor belt to operate. It can widely replace the external drive device composed of electric motors and reducers currently in use. The oil-cooled motorized pulley has good sealing performance, so it can be used in dusty, damp and muddy places.
| Input power | 1.5kw~15kw |
Drum diameter | φ320mm~φ800mm |
Drum width | 500mm~1400mm |
Belt speed | 0.8m/s~4m/s |
Price | 3500~100000 yuan |

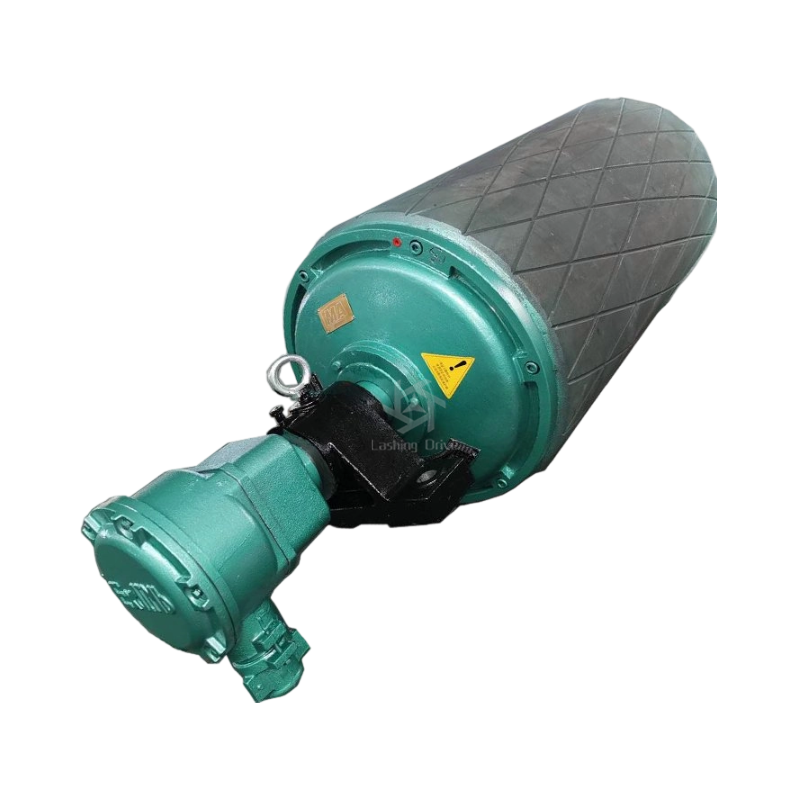

Explosion-Proof Motorized Pulley
This series is a new type of motorized pulley developed on the basis of TDY75 oil-cooled motorized pulley. In addition to the characteristics of TDY75 oil-cooled motorized pulley, it also has explosion-proof features. Its technical parameters are the same as the TDY75 oil-cooled motorized pulley.
| Input power | 1.5kw~15kw |
Drum diameter | φ320mm~φ800mm |
Drum width | 500mm~1400mm |
Belt speed | 0.8m/s~4m/s |
Price | 3500~100000 yuan |

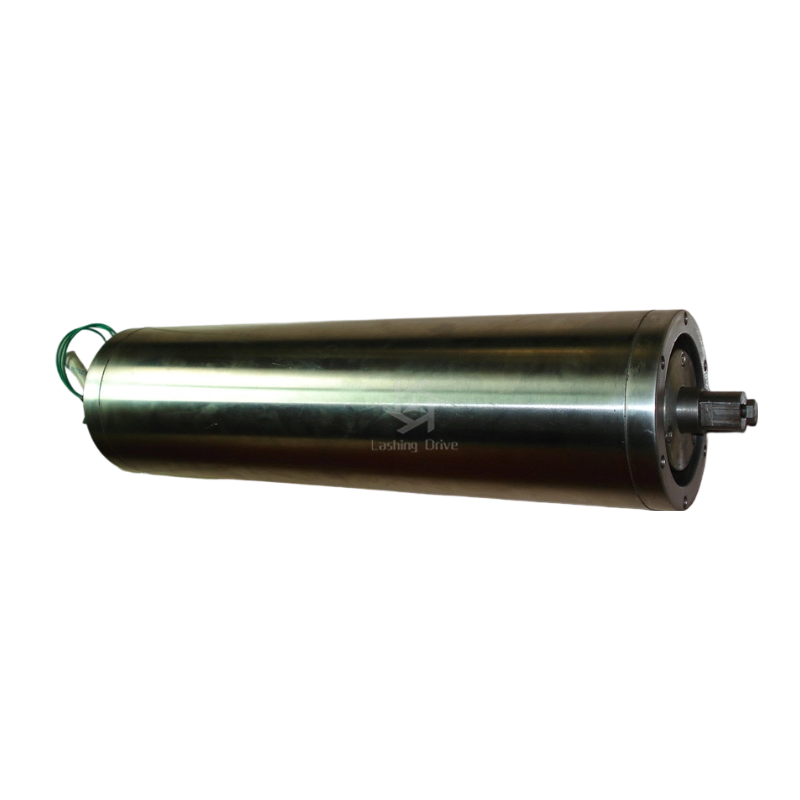

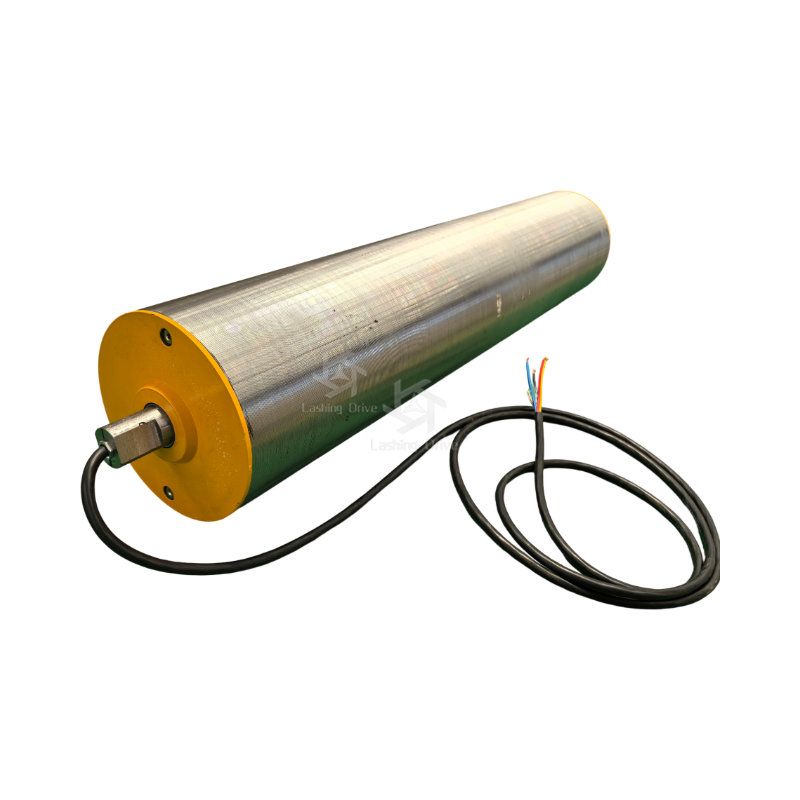

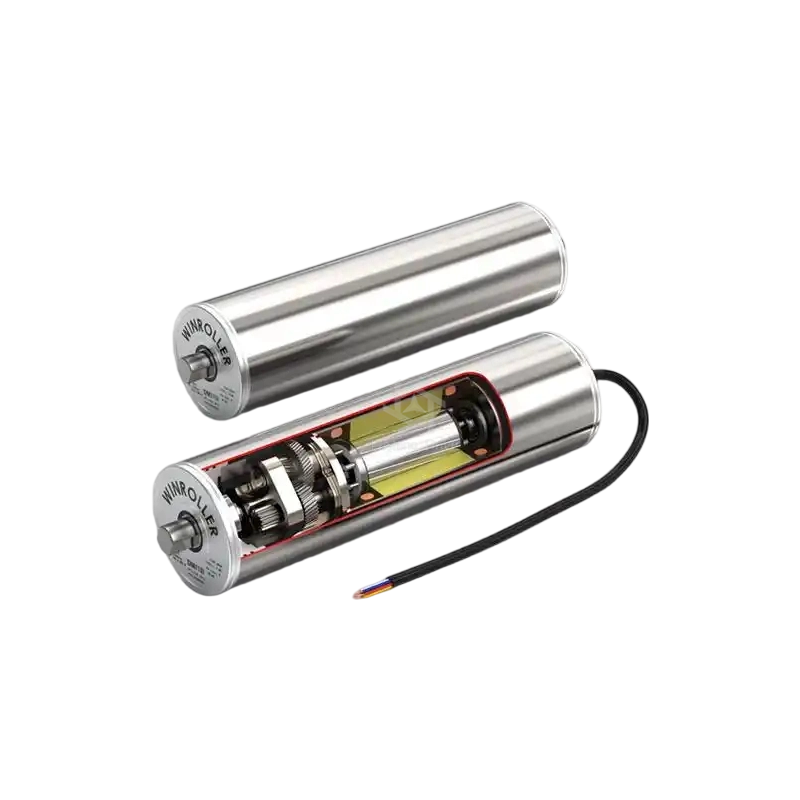

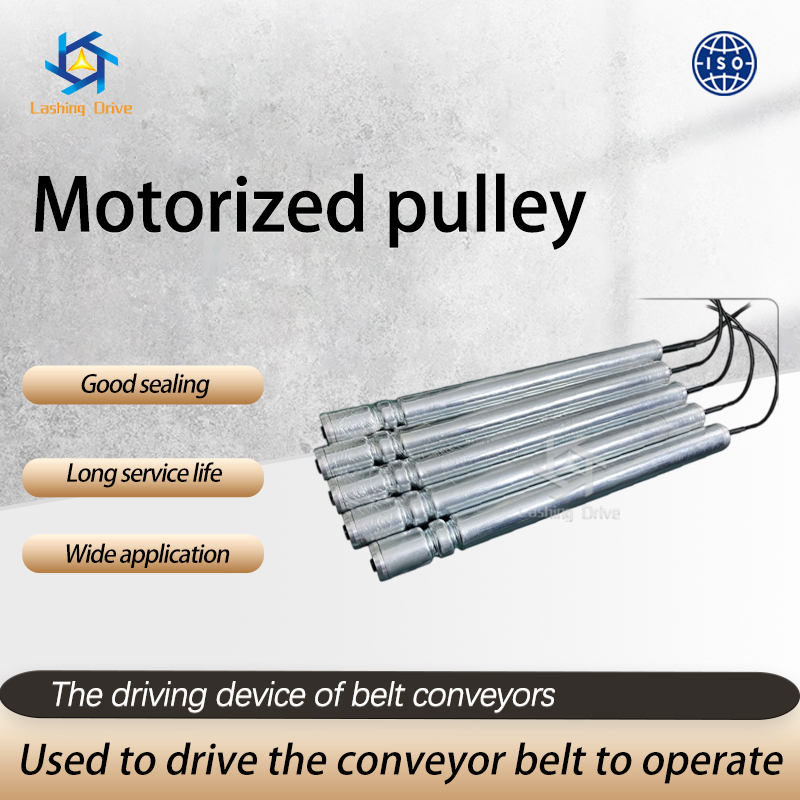

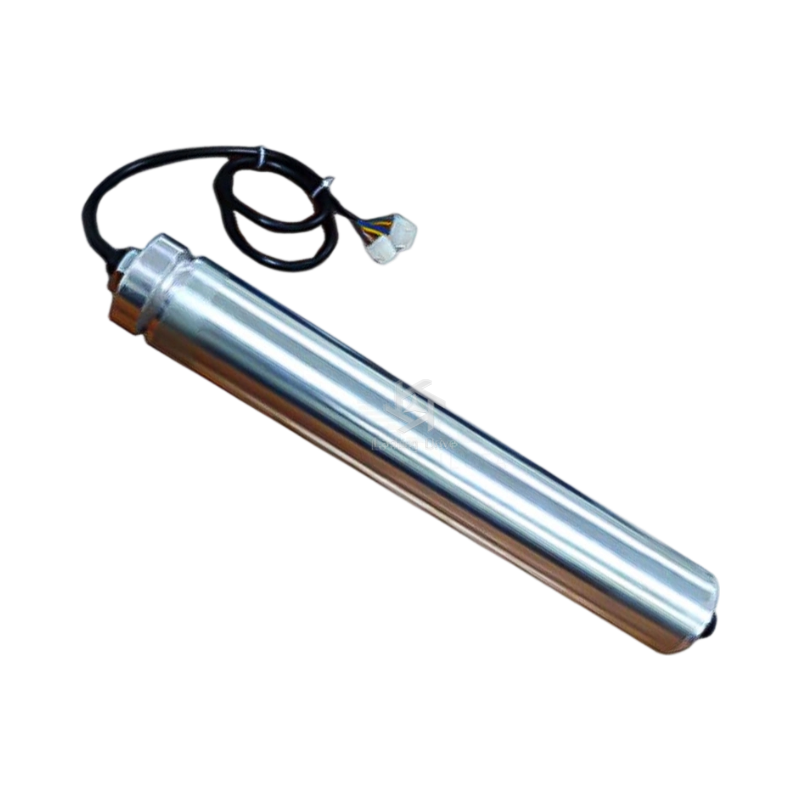

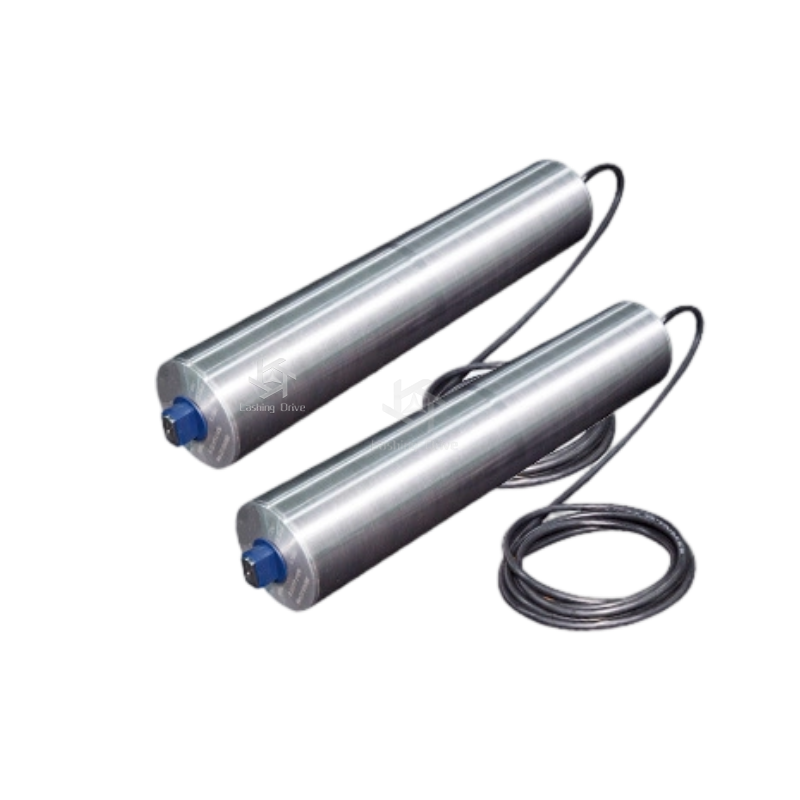

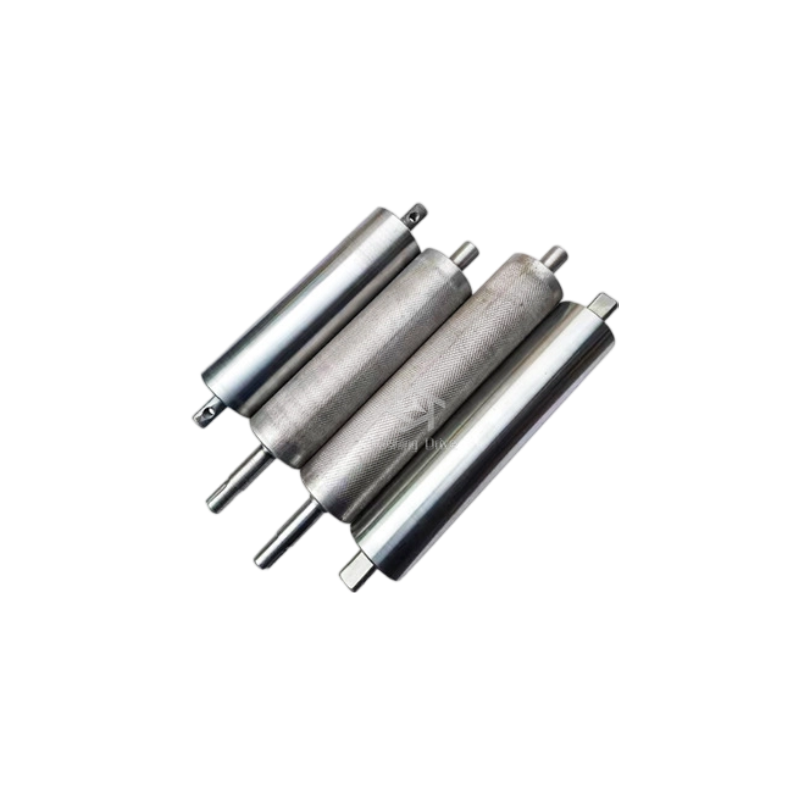

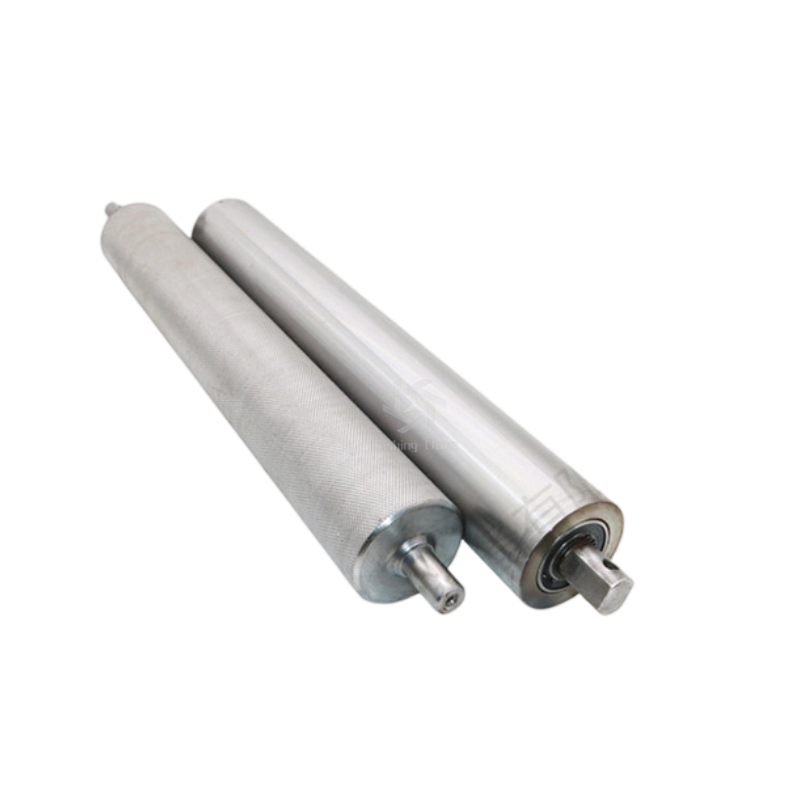

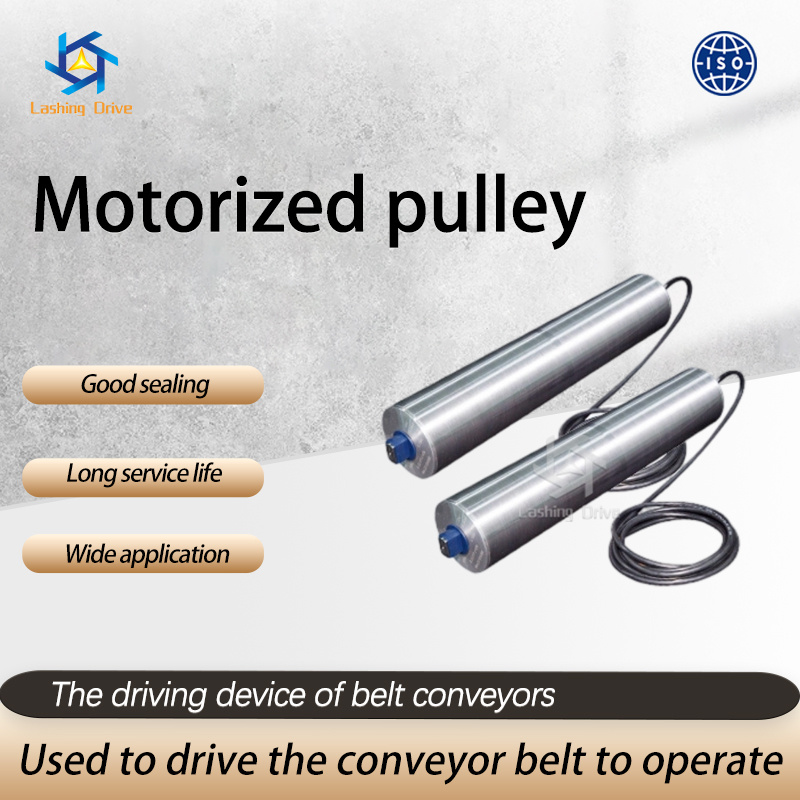

SMROOLL Series Miniature Motorized Pulley
The motors of this series are designed and manufactured according to the European IFC standard, with an insulation level of F and a sealing level of IP66/67. It has passed CE safety certification and features fast installation, easy operation, space saving, low energy consumption, low noise, wide environmental adaptability and simple maintenance. It is widely used in industries such as small security screening machines, packaging machines, belt scales, pharmaceutical industry, food, and belt conveyors. This series of products includes 11 specifications.
| Input power | 1.5kw~7.5kw |
Drum diameter | φ82mm~φ321mm |
Drum width | 270mm~560mm |
Belt speed | 0.05m/s~3.2m/s |
Price | 300~20000 yuan |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
Lubrication of Drum Motors
Bearings are the most vulnerable components in rollers, and the lubrication of drum motors essentially refers to the lubrication of bearings. To ensure proper operation of bearings, avoid direct contact between the raceways and rolling elements, reduce internal friction and wear, and improve bearing performance and service life, regular lubrication of bearings is essential. Grease lubrication is used, with lithium-based grease as the recommended type.
(1) Lubrication Methods
Bearing lubrication generally employs grease gun lubrication and centralized lubrication systems.
The grease gun method involves injecting grease into the bearing housing using a grease gun.
Centralized lubrication systems use manual or electric grease pumps for timed and quantitative supply. Centralized lubrication systems should be regularly inspected for pipe damage, loosening, or blockage, the movement of the indicator rod of the distribution valve should be confirmed, and filters on the piping should be cleaned periodically.
(2) Amount of Lubricating Grease
For new or replaced bearings, under normal conditions, the bearing space should be completely filled with new grease, while the bearing housing should be filled to approximately 2/3 of its capacity.
(3) Regular Relubrication
After a period of operation, the bearings in drum motors require additional grease supplementation, typically at intervals of about half a month, depending on actual operating conditions.
Supplemental lubrication serves the following purposes: lubricating the bearings and protecting the shaft; cooling the shaft and components within the bearing housing; and cleaning the bearing housing.
Specific lubrication method: Use a grease gun to aim at the lubrication port, with excess grease being discharged from the overflow port; if the bearing housing does not have an overflow port, excess grease can also be discharged from the side oil seal.
